What is Small Screw Conveyor？

Small screw conveyor is a small diameter screw conveyor, also called mini screw conveyor, designed for small feed rates and laboratory applications, usually used in the production of chemicals and drugs or any process that requires precise small quantities of conveying.

small screw conveyor system

The length of the small screw conveyor (the center distance between the inlet and outlet) is generally 100mm-2000mm, and the conveying capacity is from 0.01kg/h-1000lkg/h. It can be equipped with a stirring device, weighing device, heating device, hopper, etc., according to the conveying material. Carbon steel, stainless steel and non-metallic materials (such as nylon, plastic, etc.) can be selected.

Small Screw Conveyor Product Display

product show

Application of Small Screw Conveyor

Small screw conveyors are used in pharmaceutical, flour, feed, chemical or any process that requires precise, small, or even very small footprint feeding. After the main feeder is closed, continue feeding to the outlet of the larger main screw feeder to improve the feeding accuracy, usually installed on the main screw feeder below the feeder.

Delivery range: 0-100g/h, 100-1000g/h, 1-5Kg/h, 5-10Kg/h.

Application: suitable for horizontal or less than 20° inclination, conveying powdery, granular and small block materials, such as cement, pulverized coal, grain, fertilizer, ash, sand, coke, etc.

Application

Customized Product

Small screw conveyor customization

1. It can be equipped with speed regulating motor and explosion-proof motor Speed regulation mode: electromagnetic speed regulation, stepless speed change, frequency conversion speed regulation, speed regulation motor (220V)

2. It can be equipped with stirring device, weighing and measuring device, water cooling device, warehouse wall vibration device, heating device, hopper, etc.

3. The shape of the outer tube can be round tube type and U-shaped groove type

4. The screw shaft can be divided into shaft type and shaftless type

5. Customizable double small screw conveyor

6. It can be installed tilted up or down

Technical Parameter of Small Screw Conveyor

Types
Types	100	160	200	250	315	400
Screw diameter(mm)	100	160	200	250	315	400
Screw pitch(mm)	100	160	200	250	315	355
Rotating speed(r/min)	100	120	90	90	75	75
Capacity Qφ=0.33(m3/h)	2.2	7.6	11	22	36.4	66.1
Power Pd 1=10m(kw)	1.1	1.5	2.2	2.4	3.2	5.1
Specification only for your reference, size variable as per customer's request. Note: Please use other types of screw conveyors of our company for those larger than 1000 kg/h.

Benefits of Small Screw Conveyor

Small diameter

The spiral diameter is 114mm, 159mm, 160mm, 250mm, 315mm, etc., specially designed for users with small output.

Small capacity

The capacity ranges from 0.5 kg/hour to 1000 kg/hour, and the length is generally 200mm-2000mm.

Small & flexible

The screw diameter is small, the structure is compact, and the footprint is small, which can be installed in narrow areas.

sealing system

The conveying process is carried out in a sealed round tube to avoid contamination of the conveyed products.

Various materials

It can be made from a variety of materials, such as carbon steel, stainless steel and plastic, to resist corrosion, abrasion or heat resistance, depending on the product being shipped.

Customizable

Each unit comes with a standard receiving hopper or flanged inlet, custom hoppers are also available to support special applications.

Structure of Small Screw Conveyor

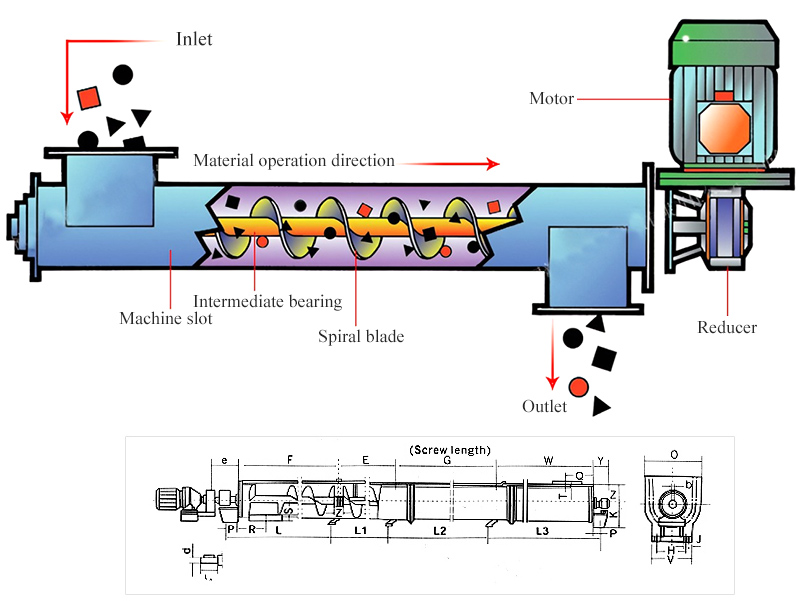

small screw conveyor structure

Small screw conveyor has the advantages of simple structure, small size, good sealing performance, low manufacturing cost and small footprint.

Driving device: including motor, reducer, and coupling. The motor is responsible for driving. The reducer prevents the screw shaft from rotating too fast and causes damage to the conveyor. The coupling is responsible for transmitting power to the screw shaft.

Spiral shaft: It is made of a long and narrow steel plate with a certain thickness twisted into a spiral shape, and the shaft or shaftless design can be selected (the shaftless design is more suitable for conveying high water content, paste, ribbon, etc. easy-to-build materials).

Chassis: A circular sealing pipe is used for feeding the sealing equipment.

Feeding and discharging device: It is divided into four kinds: feeding port, square discharging port, hand-pushing discharging port, and rack-type discharging port. Users can open welding on the body by themselves.

Dimensions of Small Screw Conveyor

small screw conveyor parts

Model	W	A	B	C	D	N	Q	Y	L	K	R	S	P	O	H	V	J	T	G	L
LS100	2500	100	180	146	10	4	180	190	90	112	180	112	60	178	120	160	14	163	1500 2000 2500	3500-40000
LS160	2500	160	240	206	10	4	200		112	150	200	150		270	120	160	14	190
LS200	3000	200	300	256	14	8	225		112	180	225	180		308	160	200	14	212
LS250	3000	250	350	306			250		140	224	250	224		336	200	250	18	240		40000-80000
LS315	3000	315	425	370			330		214	280	390	250		443	300	350	20	340
LS400	3000	400	500	456			3580		224	355	390	280		533	320	400	24	384

Proof of Solutions for Our Wide Range of Products

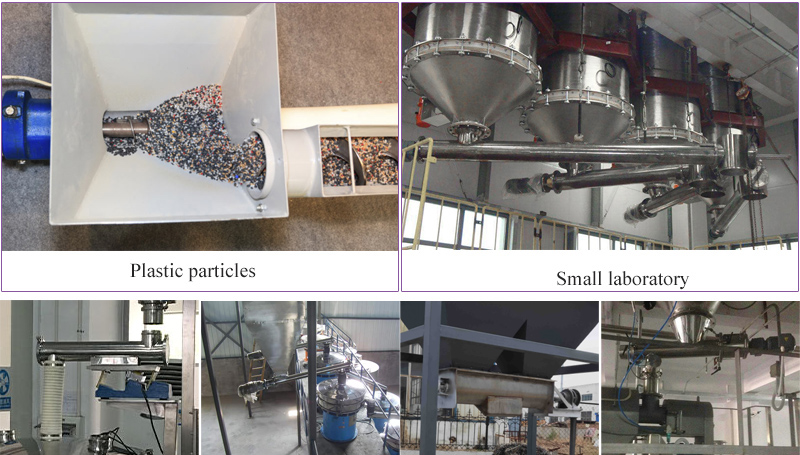

customer site

Small Screw Conveyor Manufacturers

small screw conveyor manufacturers

Small screw conveyor manufacturer - Dahan Machinery, specializing in screw conveyors, Dahan manufacturers are factory direct sales, from design, drawing, modeling, processing, quality inspection, assembly, test machine, painting, delivery, etc. We have machining workshops (lathes, milling machines, boring machines, drilling machines), assembly workshops, painting workshops, warehouses, etc. All models, reasonable price, 1 year warranty.

The specifications of this product are (tubular, U-shaped) (carbon steel, stainless steel), which can be reasonably selected and designed according to the particle size, conveying volume, and conveying distance of the conveyed material, so as to achieve no jamming, no arching, and smooth discharge. Parameters and drawings are provided free of charge.

Our manufacturer selects and designs according to the parameters you provide. We have ten years of experience in design and production, and the product quality is good.

1. If you are replacing, you need to provide the flange (round or square), the flange (outer diameter, inner diameter, flange hole distance), the distance between the inlet and outlet, whether there is a shaft or no shaft, etc. If it is a new installation, these parameters can be ignored, and you can do it according to our size during installation.

2. It is necessary to provide some parameters such as installation conditions, material name, material particle size, whether the material has hardness, whether the material has viscosity, material temperature, import and export distance, and the conveying volume you need. you need.

How To Choose Suitable Model?

1. If you have ever used a small screw conveyor, please tell us its diameter, length, conveying capacity, material.

2. If you have never used a small screw conveyor before, please provide the following material information:

2.1.the name of material?

2.2.How much is the hourly output?or tell me that the diameter of screw?

2.3.the material of equipment:a.304 stainless steel b.carbon steel

2.4.What is your need about conveying ways:incline or vertical or horizontal?

2.5.If there are a angle for screw,if it have a angle,pls tell me.If you cann`t confrim this angle,pls tell me the horizontal distance from inlet to outlet or the height from output to ground.
