Introduction of Mini Auger Feeder

Mini auger feeder is designed for small feed rates and laboratory applications to reliably and accurately feed a variety of dry powders, granular materials in a very small footprint, with screw diameters including 114mm, 159mm, 160mm, 200mm, The conveying capacity ranges from 3 to 35 cubic meters per hour, and the length can reach 20 meters. Mini auger feeder is usually used in the production process of fine powder and ultra-fine powder to quantitatively and continuously feed the fine powder or ultra-fine powder from the storage bin or hopper to the receiving device, with stable flow, tightness, etc.

Mini Auger Feeder

types of mini auger feeder

Application of Mini Auger Feeder

Application

The conveying rate of mini auger feeder can reach 1-6KG per hour to 2000KG per hour. It is mainly used for adding minerals and other trace element additives to flour. It can also be used for adding trace elements in feed, food, pharmaceutical, chemical and other industries. , Dosing range: 0-100g/h, 100-1000g/h, 1-5Kg/h, 5-10Kg/h, 10-30Kg/h, 100-1000Kg/h.

Mini auger feeder is suitable for dosing powder in sewage treatment, powder dosing in pharmaceutical factories, quantitative dosing of additives in paper mills, dosing of metal powders, dosing of toners, wide application range and stable feeding.

Technical Parameters of Mini Auger Feeder

Structure of mini auger feeder

Types	100	160	200	250	315	400
Screw diameter(mm)	100	160	200	250	315	400
Screw pitch(mm)	100	160	200	250	315	355
Rotating speed(r/min)	100	120	90	90	75	75
Capacity Qφ=0.33(m3/h)	2.2	7.6	11	22	36.4	66.1
Power Pd 1=10m(kw)	1.1	1.5	2.2	2.4	3.2	5.1
Specification only for your reference, size variable as per customer's request. Note: Please use other types of screw conveyors of our company for those larger than 1000 kg/h.

Benefits of Mini Auger Feeder

Small diameter

Spiral diameter is 100mm, 125mm, 139mm, 160mm, mainly used for continuous feeding of small batches of powdery and granular materials.

Small output

The length of mini auger feeder is generally 100mm-2000mm, and the feeding amount is from 0.01kg/h to 1000kg/h.

Sealed structure

The fully enclosed structure can effectively reduce the pollution to the environment.

Low cost

About 1/10 of the screw conveyor, which can effectively reduce consumption.

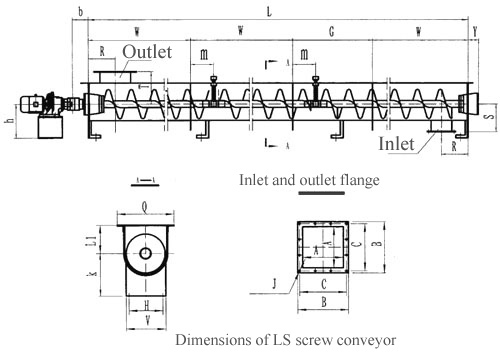

Dimensions of Mini Auger Feeder

Dimensions of mini auger feeder

Model	W	A	B	C	D	N	Q	Y	L	K	R	S	P	O	H	V	J	T	G	L
LS100	2500	100	180	146	10	4	180	190	90	112	180	112	60	178	120	160	14	163	1500	3500-40000
LS160	2500	160	240	206	10	4	200	190	112	150	200	150	60	270	120	160	14	190	2000	3500-40000
LS200	3000	200	300	256	14	8	225	190	112	180	225	180	60	308	160	200	14	212	2500	3500-40000
LS250	3000	250	350	306	14	8	250	190	140	224	250	224	60	336	200	250	18	240	2500	40000-80000

Customization of Mini Auger Feeder

Mini auger feeder can be customized as follows:

Customization

1. It can be equipped with speed regulating motor and explosion-proof motor

Speed regulation mode: electromagnetic speed regulation, stepless speed change, frequency conversion speed regulation, speed regulation motor (220V)

2. It can be equipped with stirring device, weighing and measuring device, water cooling device, warehouse wall vibration device, heating device, hopper, etc.

3. The shape of the outer tube can be round tube type and U-shaped groove type

4. The screw shaft can be divided into shaft type and shaftless type

5. Customizable double shaft mini auger feeder

6. It can be installed tilted up or down

Proof of Solutions for Our Wide Range of Products

Customer case

Mini Auger Feeder Manufacturer

mini auger feeder manufacturer

Xinxiang Dahan Machinery specializes in the production of mini auger feeder with reasonable price, 1 year warranty, and provides customized quick selection and drawing parameters. This product has specifications (single shaft, no shaft), shell material: carbon steel, stainless steel. The design can be reasonably selected according to the particle size, conveying volume and conveying distance of the conveyed material to ensure that the material is not jammed or arched, and the material is discharged smoothly. Parameters and drawings are provided free of charge. One-stop production of mini auger feeder manufacturers, from design, drawing, modeling, processing, quality inspection, assembly, test machine, painting, delivery, etc. We have machining workshops (lathes, milling machines, boring machines, drilling machines), assembly workshops, painting workshops, warehouses, etc.

How To Choose Suitable Model?

If you have ever used the screen machine, kindly pls tell us its model, if you can't confirm, as a professional manufacturer, our engineers can make it for your specific according to your specifications. Please give me and confirm the following parameters so that we can recommend a suitable model for you and then quote:

1. Material name?

2. What is the hourly output? Or tell me the diameter of the screw?

3. Equipment material:

a. 304 stainless steel b. Carbon steel

4.Are the screws angled and if so please let me know. If you can't confirm the angle, please tell me the horizontal distance from the entrance to the exit or the height from the output to the ground.

5. About the motor?

6. Other special designs?
