What are the classifications of the three-dimensional vibrating screen?

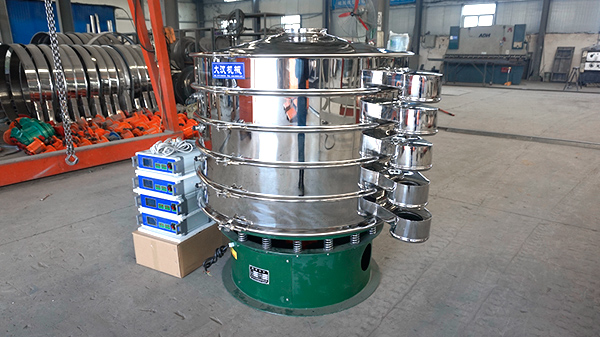

The three-dimensional rotary vibrating screen is our commonly used rotary vibrating screen, and it is the most common vibrating screening equipment. The exciting force generated by the vibration motor of the three-dimensional rotary vibrating screen is converted into horizontal, vertical and inclined three-dimensional motion by the upper and lower eccentric weights, and then the motion is transmitted to the screen surface, so it is called a three-dimensional rotary vibrating screen.

According to the different screening requirements, the three-dimensional rotary vibrating screen also has different classifications:

Standard three-dimensional rotary vibrating screen: There are many models from DH-400, DH-600 to DH-1800 to choose from, which can filter, remove impurities and classify the screened materials, which can meet the screening needs of most materials , There are carbon steel, 304/316 stainless steel, polypropylene (PP plastic) material.

Edged rotary vibrating screen: The feeding port is designed to be heightened and protected. The edged design can increase the amount of feed, prevent material from splashing, and observe the condition of the screen.

Gate type rotary vibrating screen: The design of the customs gate can control the residence and screening time of materials on the screen, ensure the processing accuracy of difficult-to-screen materials (viscous and fine materials), and increase the processing capacity.

Ultrasonic rotary vibrating screen: equipped with an ultrasonic system, it is suitable for screening fine materials, and can solve the problem of blockage while screening materials.

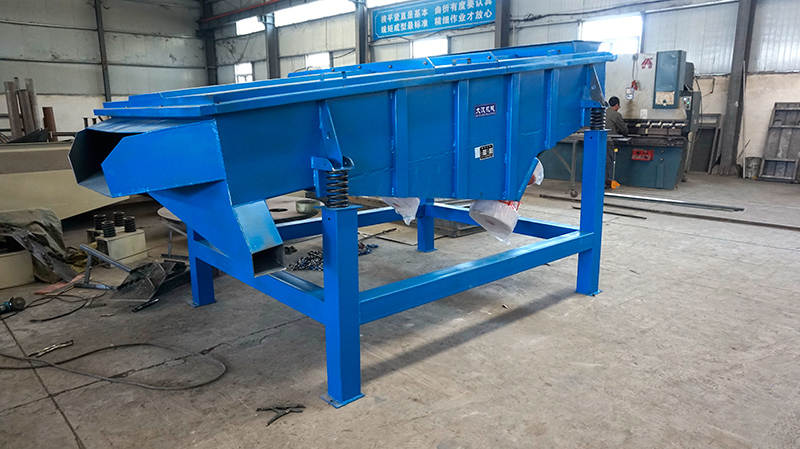

In-line screen: single-layer design, large processing capacity, suitable for coarse screening at the front end of the production line, filtering and removing impurities, good at screening flour, starch, washing powder, additives and other materials.

High-frequency/explosion-proof vibrating screen: Both the high-frequency vibrating screen and the explosion-proof vibrating screen are improved from the motor, the high-frequency vibration motor (3000RPM) is selected for the high-frequency, and the sealed motor is selected for the explosion-proof. The high-frequency vibrating screen is suitable for filtration and screening of ceramic glaze and other materials; explosion-proof screening of fine materials that are prone to static electricity.

Movable rotary vibrating screen: The universal wheel is installed at the bottom of the screen machine to improve the flexibility of the screen machine, adapt to changes in location, and better meet production needs.
