What are the structural characteristics of the tumbler scre?

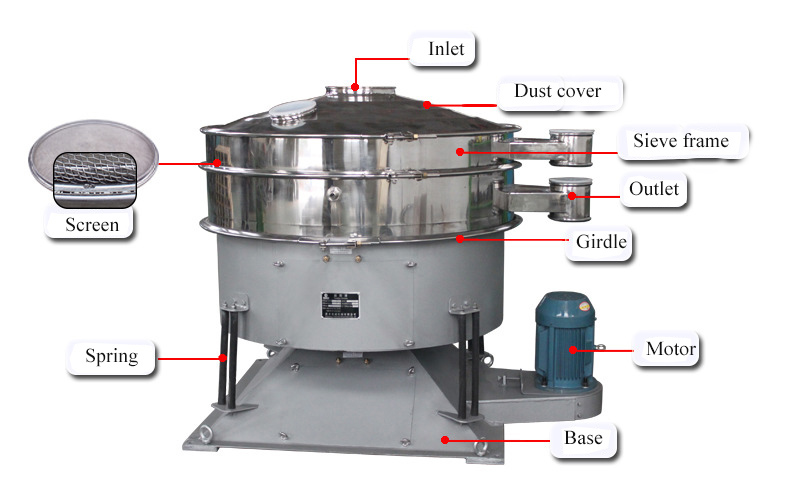

The tumbler scre is composed of feed port, screen box, screen mesh, discharge port, main shaft, shaft chamber, balance block, spring group, conical base and motor from top to bottom.

Working Principle:

The motor drives the main shaft and the eccentric block on the main shaft to rotate, the eccentric block makes the box perform manual movement, the spring group controls the swing amplitude and acceleration of the screen box, and the power group cooperates with each other to effectively screen the materials.

1. The feeding port is small to prevent dust from flying in the process of screening materials;

2. The number of layers of the screen box can be disassembled, which is convenient to adjust the screening accuracy according to the needs;

3. The screen is responsible for grading the material, and it is sealed and placed in the screen box. The multi-layer screen is designed. Because the screen is relatively fragile, the unique mesh frame design is used to facilitate the replacement of the screen, which only takes 3-5 minutes; the screen can reach 500 mesh (0.028mm), and the maximum output can reach 80t/h, which can match the output and accuracy. balance;

4. The discharge port can be rotated 360°, and the material can be discharged flexibly to meet production needs;

5. The shaft chamber protects the main shaft, prevents the main shaft from being rusted and damaged, and at the same time makes the appearance of the body more beautiful;

6. The motor drives the main shaft and the balance block to rotate to provide power for the screen box;

7. The spring group connects the conical base and the screen box to control the shaking amplitude of the screen box and improve the running stability;

8. The conical base increases the contact area between the machine and the ground, improves the bearing capacity, and makes the machine run more stably.
