Application of food vibrating sieve in sieving of soybean flour

Soybean flour Vibrating Sieve is a soybean flour made from defatted soybeans. It is widely used and has high nutritional value. It needs to be packaged for sale or directly used after removing impurities and grading.

Processing technology

Bean selection - cleaning - leaching - grinding - acid precipitation separation - neutralization - drying - cooling process, the dried soybean protein powder should be cleaned and classified before packaging, and the soybean powder After sieving and loosening, it is packaged.

Application stage and purpose

1. Bean selection stage, purpose: to remove impurities such as damage, gravel, soil, straw and other impurities in soybeans

2. Packaging pretreatment, purpose: loose soybean powder to break false agglomerates, intercept unground soybean particles, and classify soybean powder according to fineness (sieving mesh 80~200 mesh)

Recommended Food Shaker

1. Food linear vibrating sieve: used for soybean impurity removal in the bean selection stage

2. Food circular vibrating sieve: used for sieving and removing impurities before packaging

Advantages of food vibrating sieve

Food linear vibrating sieve

1. The perforated plate sieve has uniform openings, and the opening rate is high and not easy to damage;

2. It has its own net-clearing pinball to prevent soybeans from clogging during sieving;

3. Automatic discharge, with an output of 0.12-20 tons per hour;

4. The inclination angle of the sieve surface can be adjusted to control the sieving accuracy and discharge speed.

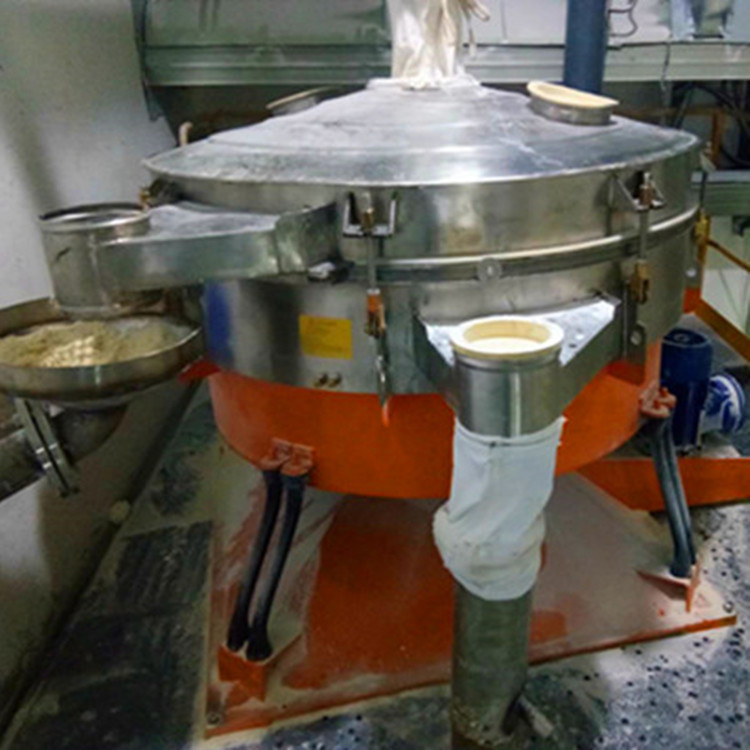

Food Circular Shaker:

1. The sieve mesh as fine as 500 meshes can remove impurities and classify soybean meal, and intercept soybeans or soybean skins that cannot be ground in soybean meal.

2. Classify the finished soybean flour according to the fineness specification, and choose 1-5 layers of sieves with different mesh numbers.

3. The vibration force is strong, which can disperse part of the false agglomerated soybean meal.

4. Comes with a mesh-clearing silica gel marble, which can remove soybean flour or soybean particles that block the sieve.

5. It can be connected to vacuum feeder or screw feeding equipment to form a production line, with an hourly output of 100-3300kg.
