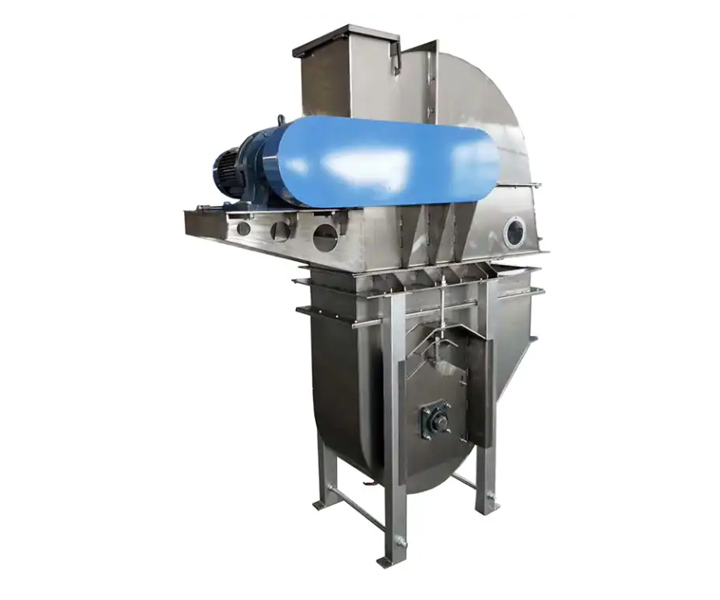

Bucket Elevator for Pet Coke-DAHAN Vibration Machinery

What is a bucket elevator for pet coke?

Bucket elevator for pet coke is a vertical conveying equipment specially used for pet coke granular materials. It consists of a bucket and a continuous chain or conveyor belt. These buckets lift the pet coke granular materials from below to above through the movement of the chain or conveyor belt. destination. Bucket elevator for pet coke is usually used to process pet coke in various industries such as cement, power generation, and steel.

Petcoke has certain characteristics in material handling, such as granular, hard, and easy to agglomerate. Bucket elevators can be designed and configured with these characteristics in mind, and appropriate bucket shapes, transmissions, and materials can be selected to adapt to the transportation requirements of petroleum coke to ensure smooth material flow and reliable transportation.

Application of bucket elevator for pet coke

The application of bucket elevators in pet coke mainly involves the following aspects:

1. Petroleum coke production: Bucket elevators can lift raw cinder or coke from storage facilities or charging equipment to coke ovens or other processing equipment to meet the needs of coke production.

2. Coke treatment: The bucket elevator can transport coke from one process stage to another to achieve continuous treatment of coke.

3. Storage and loading: Bucket elevators can lift coke from storage bins or yards to loading equipment to achieve efficient loading and transportation of coke.

4. Refinery Applications: In refineries, bucket elevators for pet coke are widely used to transport petroleum coke from coking units to storage facilities or downstream processing units.

5. Metallurgical Industry: In the metallurgical industry, bucket elevator for pet coke can transport petroleum coke to furnaces or other smelting equipment.

6. Building Materials Industry: Bucket elevators for pet coke can transport pet coke to cement production lines to ensure raw material supply.

Benefits of bucket elevator for pet coke

Efficient transportation

The bucket elevator can quickly and efficiently lift petroleum coke granular materials from low to high, achieving vertical transportation, saving time and workload.

High capacity

The Bucket elevator for pet coke is a continuous conveyor that can handle a large amount of pet coke granular materials and adapt to the needs of high output and large-scale production.

Flexible to adapt

Petroleum coke bucket elevators can be customized and designed according to process requirements to adapt to the needs of different heights, angles and working environments.

Safe and reliable

Equipment is usually equipped with safety protection devices, such as limit switches, power-off protection, etc., to ensure the safe operation of the equipment.

Durability and wear resistance

Pet coke can be abrasive, and therefore, bucket elevators used for handling this material are typically designed with wear-resistant components. The buckets used in the elevator may have reinforced edges or special coatings to withstand the abrasive nature of pet coke.

Dust control

Pet coke handling can generate dust, which can be a concern for safety and environmental reasons. Bucket elevators can be equipped with dust collection systems or integrated dust control measures to minimize dust emissions during the material handling process.

Bucket elevator for pet coke specification

Model					TH160		TH200		TH250		TH315		TH400		TH500		TH630
Bucket					ZH	SH	ZH	SH	ZH	SH	ZH	SH	ZH	SH	ZH	SH	ZH	SH
Delivery volume m³/h			Normal type		15	25	18	29	31	48	35	60	60	94	75	118	114	185
			Upgraded		-	-	-	-	-	-	46	80	80	125	100	157	152	246
Bucket		Bucket width mm			160		200		250		315		400		500		630
		Bucket capacity L			1.2	1.9	1.5	2.4	3.0	4.6	3.75	6.0	5.9	9.5	9.3	15.0	14.6	23.6
		Bucket distance mm		Normal type	500						512				688
				Upgraded	-						384				516
Chain	Round steel (diameter×pitch)mm				14×50						18×64				22×86
	Number of rings			Normal type	9						7				7
				Upgraded	-						5				5
Bucket running speed m/s					1.2						1.4				1.5
Main sprocket pitch diameter mm					300	365			520		630		710		800		900
Spindle speed r/min					69.71	63.22			44.11		42.5		37.6		35.8		31.8
Particle size mm					20	25			30		35		40		50		60

How to choose bucket elevator for pet coke?

When choosing a bucket elevator suitable for the characteristics of petroleum coke, you can consider the following factors:

1. Wear resistance: Petroleum coke has certain abrasiveness, so it is necessary to choose a bucket elevator with wear resistance. The bucket shape and material of the bucket elevator should be able to resist abrasion from petroleum coke particles and extend the service life of the equipment.

2. Conveying capacity: Determine the required conveying capacity of the bucket elevator according to production needs. This depends on the amount of petcoke granular material that needs to be transported per hour to ensure that the equipment can meet production requirements.

3. Bucket shape: Consider choosing a bucket shape suitable for petroleum coke. Some bucket shapes, such as flat-bottom buckets or curved buckets, can reduce the accumulation and adhesion of petroleum coke particles and contribute to smooth material flow.

4. Bucket coating or coating: Consider choosing bucket coating or coating for bucket elevators to increase the wear resistance of the bucket and reduce the adhesion of petroleum coke particles. Coatings or coatings can provide additional protection and reduce the risk of wear and clogging.

What is the function of bucket elevator for pet coke?

The functions of bucket elevator for pet coke can be divided into the following three points:

Loading and unloading: Bucket elevators are used to load and unload pet coke, lifting it from storage areas or transport vehicles to the required height, or lowering it from a height to a designated location.

Storage support: Elevators can be used to transport petroleum coke vertically to storage facilities such as warehouses or storage silos, helping to effectively organize and manage the storage of petroleum coke.

Convenient transportation: Pet coke can be transported from one location to another quickly and efficiently, reducing the time and cost of material transportation.
