What is a bucket elevator for candy?

Bucket elevator for candy is a type of vertical conveyor system specifically designed for transporting candy products between different levels or floors within a production facility. It is commonly used in the confectionery industry to efficiently and gently elevate bulk quantities of candies, such as chocolates, gummies, hard candies, and other similar treats.

The bucket elevator consists of a series of buckets attached to a belt or chain that moves in a continuous loop. The buckets are designed to securely hold the candies as they are lifted vertically. The elevator is equipped with mechanisms such as pulleys, drives, and guides to ensure smooth and reliable operation.

What is Bucket Elevator for Candy Used for?

Bucket elevators for candy serve several purposes throughout candy production, offering efficient and gentle transportation between different stages. Here are some key applications:

1. Production Line Movement:

Transferring Candy Between Machines: Bucket elevators are commonly used to move candy from one processing machine to another. For example, they can lift candy from a mixer to a molding machine, or from a cooling tunnel to an enrobing station (where a chocolate coating is applied).

2. Packaging Line Integration:

Feeding Candy to Packaging Machines: Bucket elevators can elevate finished candies to the appropriate height for feeding into packaging machines. This eliminates the need for manual handling and streamlines the packaging process.

3. Storage and Warehousing:

Lifting Candy to Storage Shelves: In candy warehouses, bucket elevators can efficiently lift large quantities of candy to higher storage shelves, maximizing space utilization.

4. Sorting and Distribution:

Moving Candy Between Sorting Stations: Bucket elevators can be used to transport candy between different sorting areas or workbenches within a candy sorting system, facilitating efficient product distribution.

Working Principle of Bucket Elevator for Candy

The working principle of bucket elevator for candy is as follows:

Feed port: Candy or candy raw materials enter the elevator system through the feed port.

Bucket Conveyors: Inside the elevator, there is a series of bucket conveyors attached to a continuous chain or belt. Bucket conveyors are designed so that candy can be contained within the bucket and transported vertically along a chain or belt.

Vertical Conveying: Candy is loaded into the bucket and a chain or belt starts running, lifting the bucket and the candy inside vertically from the bottom to the top.

Discharge port: When the bucket conveyor reaches the top, the candies are released through the discharge port to the target location, which can be equipment for the next production stage or a storage container.

Continuous circulation: The chain or belt of the elevator will continue to circulate, so that the candy can be continuously transported from the bottom to the top to achieve continuous transportation.

Can a bucket elevator for candy handle different sizes and shapes of candies?

Here's a breakdown of how different candy types might be handled by a bucket elevator:

Hard Candies (e.g., lollipops, sour candies): These candies are generally less fragile and can be handled in standard bucket elevators with minimal risk of damage.

Soft Candies (e.g., gummies, jellies): Due to their softer texture, they require more gentle handling. Bucket elevators with padded buckets or slower speeds can be used to minimize impact.

Chocolates: Chocolate can be delicate, especially thin pieces. Similar to soft candies, padded buckets or slower speeds are recommended.

Benefits of bucket elevator for candy

Gentle Handling

Bucket elevators are designed to handle products gently to prevent damage or breakage. This is particularly important for delicate candies that can easily get crushed or deformed during transportation.

Hygienic Design

In food industries like candy production, hygiene is crucial. Bucket elevators for candies are typically made from food-grade materials and designed to be easy to clean to maintain high levels of sanitation.

Efficient Vertical Transportation

Bucket elevators are efficient for vertical transportation of candies between different levels of a production facility. They can handle large capacities of candies at a time, helping to streamline the manufacturing process.

Customizable

These systems can be customized to meet the specific needs of the candy production process. The size and configuration of the buckets can be adjusted to accommodate different types and sizes of candies.

Bucket elevator for candy specification

bucket volume	1.8L	3.6L	6.5L
bucket material	pp	ss304	ABS
body material	mild steel	stainless steel	---
NO.S of discharge port	single	muti-discharge port	---
output	4-6m3/h	6.5-8m3/h	5.5-12m3/h
voltage(v)	220v/240v/as you need	380v/415v/440v/as you need	as you need
speed	adjustable
conveying capacity	3-10m3/h

Are there any safety features in place to prevent candies from falling out of the buckets?

Bucket elevators for candy are typically equipped with safety features to prevent candies from falling out of the buckets. These safety measures help ensure the integrity of the candies during transportation and minimize the risk of product loss or contamination. Here are some common safety features::

1.Bucket Design: The buckets or cups used in the elevator are designed with features to securely hold the candies. They are typically shaped and sized to prevent spillage or leakage of the candies during vertical movement. The design may include features such as curved or contoured bottoms, raised edges, or additional internal supports to enhance candy retention.

2.Bucket Covers: Some bucket elevator designs incorporate covers or lids for the buckets. These covers provide an extra layer of protection, preventing candies from accidentally falling out during transportation. The covers can be hinged or removable to allow easy access for cleaning or maintenance.

3.Bucket Spacing: The spacing between the buckets or cups is carefully determined to prevent candies from dislodging or falling between the gaps. The spacing is set to ensure proper containment of the candies within the buckets throughout the elevator's vertical movement.

4.Bucket Alignment: Proper alignment of the buckets or cups is crucial for effective candy retention. The elevator system is designed to maintain accurate alignment between the buckets, minimizing any gaps or misalignments that could lead to candy spillage.

5.Safety Guards and Enclosures: Bucket elevators often feature safety guards or enclosures along the sides or underneath the conveyor system. These guards prevent access to the moving parts of the elevator, reducing the risk of accidental contact or injuries. They also serve as a physical barrier to prevent candies from falling out of the buckets and ensure safe operation.

6.Monitoring and Alarms: Some modern bucket elevator systems may incorporate monitoring sensors or alarms to detect irregularities in candy flow or bucket functionality. These sensors can detect any significant deviation in the normal operation, such as bucket loss or excessive spillage, and trigger alarms or shutdowns to prevent further issues.

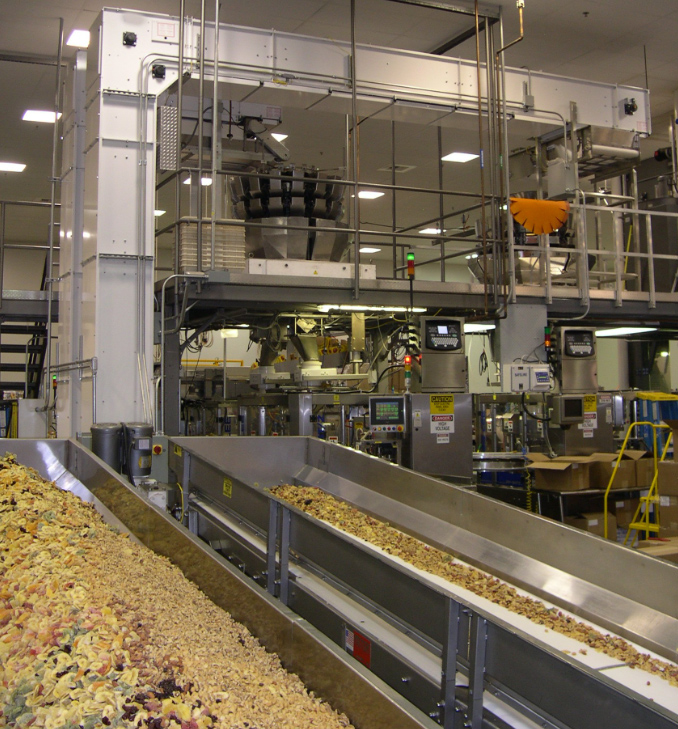

Customer case

Bucket Elevator for Candy Manufacturers

Xinxiang Dahan is a professional candy bucket elevator manufacturer. They are dedicated to designing, producing and supplying high quality, reliable candy bucket elevator equipment. Xinxiang Dahan's bucket elevators are manufactured with advanced technology and high-quality materials to ensure efficient operation and gentle handling during the candy production process. They provide customized solutions to meet the specific requirements of their customers and are committed to providing superior product quality and excellent customer service to the confectionery industry.
