What Are The Application Advantages Of Vibro Sifter?

Vibro sifter is a good helper for screening powdered materials. At this stage, the country has stricter environmental requirements, especially in industries with dust pollution. Xinxiang Dahan Machinery vibro sifter is an industrial production equipment in the field of dust prevention, In terms of performance, output, etc., the editor of Dahan will explain the advantages of vibro sifter for your reference.

1. Reasonable structure

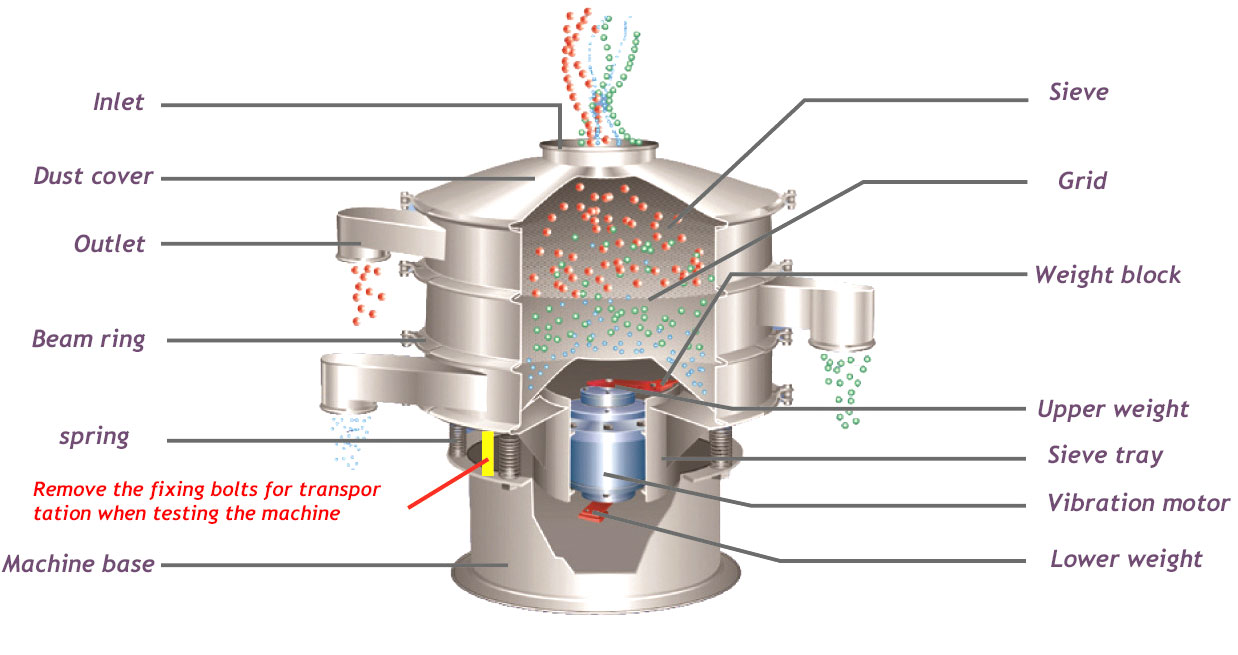

Vibro sifter has reasonable design, simple structure, easy maintenance, etc. It is listed as the equipment of choice in the food industry. In the food industry, there are usually many pipeline operations. Once the equipment is damaged, maintenance personnel need to solve it quickly to avoid the paralysis of the production process due to equipment. , The vibro sifter component is composed of vibration motor, screen frame, screen, net frame, upper cover and other parts. In the disassembly, only a few bolts are required to be removed to complete the replacement task, which greatly saves time and cost.

2. Dustproof

The vibro sifter feed port is connected with external equipment and can be made into a round or special-shaped feed nozzle according to user requirements, which solves the problem of docking and facilitates dust prevention. The screen frame is sealed with natural silica gel material. Because the screen body of the screen frame is circular, the contact part of the silica gel and the screen frame achieves a close fit, which solves the phenomenon of sealing ring falling off, thereby achieving a good dust-proof effect.

3. Small footprint

In some production occasions, large-capacity equipment cannot be placed due to space limitations. The vibro sifter is circular from the top view, and the feed port is directly above the screen. Compared with similar equipment, it saves about 30% of the space, even if it is necessary to screen multiple materials In the case of a multi-layer vibro sifter, the floor space is the same.

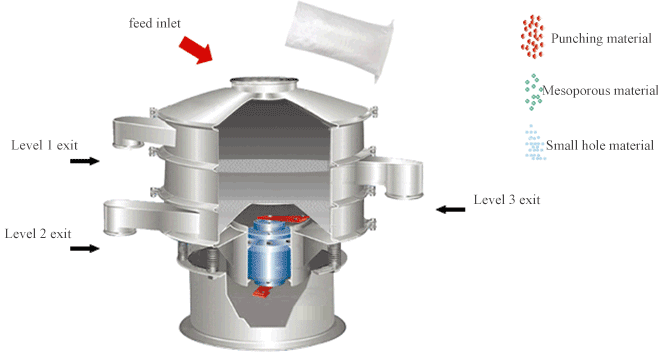

4. Main screening materials

Vibro sifter has a wide range of applications, which can meet various powder and particle screening requirements and liquid filtration requirements. It is widely used in the screening and grading of powder and granular materials in various industries such as food, medicine, chemical industry, ceramics, metallurgy, papermaking, abrasives, and environmental protection.

5.Working principle

The vibro sifter uses a vertical motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric weights to convert the rotation of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transfer this motion to the screen surface. Adjusting the phase angle of the upper and lower ends can change the movement trajectory of the material on the screen surface.

For the "what are the application advantages of vibro sifter", the editor will introduce it here. If you are interested in buying, please consult the customer service staff of Xinxiang Dahan.
