Paint vibrating sieve - sieving and filtering of dry and wet paint below 500 mesh

Coatings, that is, paints, are usually used for the decoration or protection of objects, and can form a continuous film that is firmly attached to the object to be coated, usually based on resin, oil or emulsion, with or without the addition of pigments, fillers, and the addition of corresponding additives, Viscous liquid prepared with organic solvent or water.

The coating vibrating sieve is also called the coating special vibrating sieve or the spray powder vibrating sieve, which is a circular vibrating sieving equipment. The part in contact with the material is made of 304 stainless steel, the base is made of carbon steel, and it can also be made of all stainless steel.

1. Paint class:

The paint vibrating sieve filters paint and paint, and the purpose of filtration: removes toner particles, patent skin, agglomeration, etc. in the paint

When the concentration and viscosity are high, 60 meshes - 100 meshes are generally used.

When the concentration and viscosity are low, 200 meshes to 400 meshes are generally used.

Spray paint, baking paint, generally use 325 mesh, 400 mesh.

2. Resin

sieving resins, filtration purpose: to remove resin fibers and particles. Some resin sand mold coatings select the sieve according to the grit specification.

Applicable mesh range: 60 mesh - 250 mesh

When the viscosity and concentration are high, the mesh is thicker.

When the viscosity and concentration are low, use a finer mesh.

3. Powder coating

Paint shaker sieve for powder coating. Filtration purpose: to make the coating powder more delicate, to break up false agglomerates, and to intercept the agglomerated particles.

Generally use mesh: 100 mesh, 120 mesh. But there are also a few with 150 mesh, 200 mesh.

Due to the small amount of powder coating processing industry (recycling after painting), the general mesh is 60, 80, and 100 mesh.

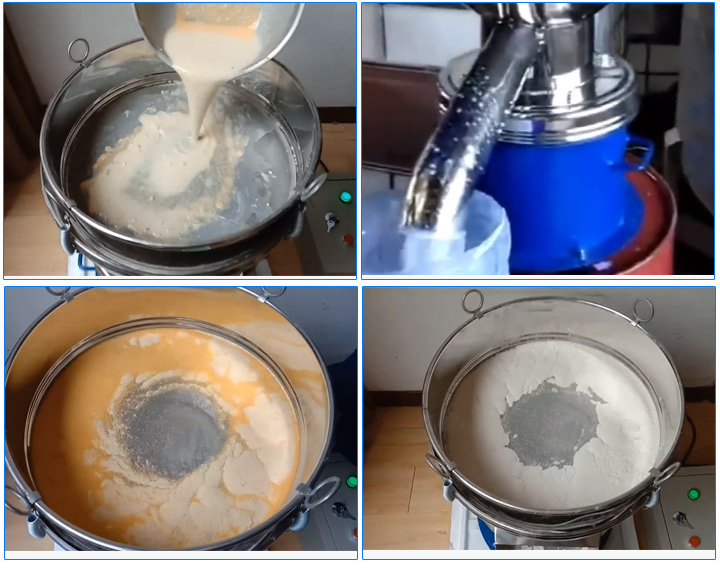

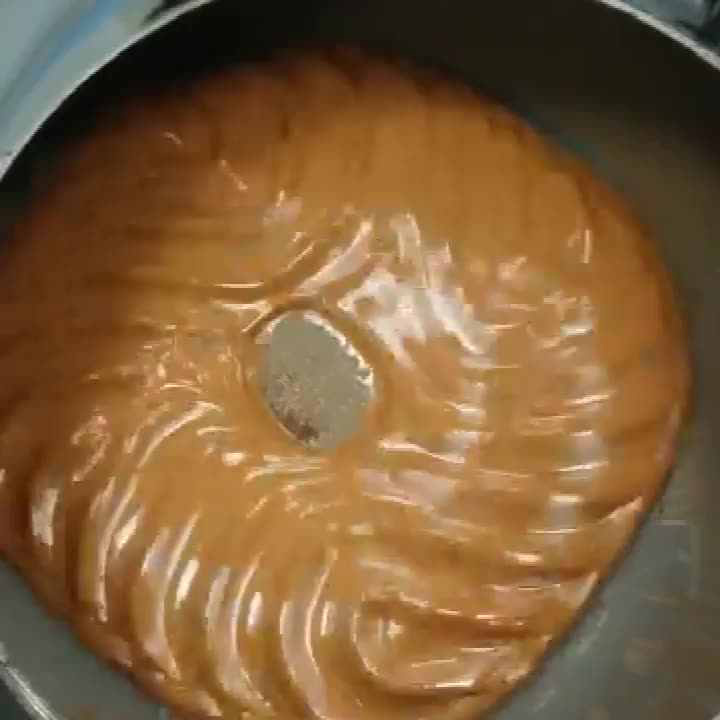

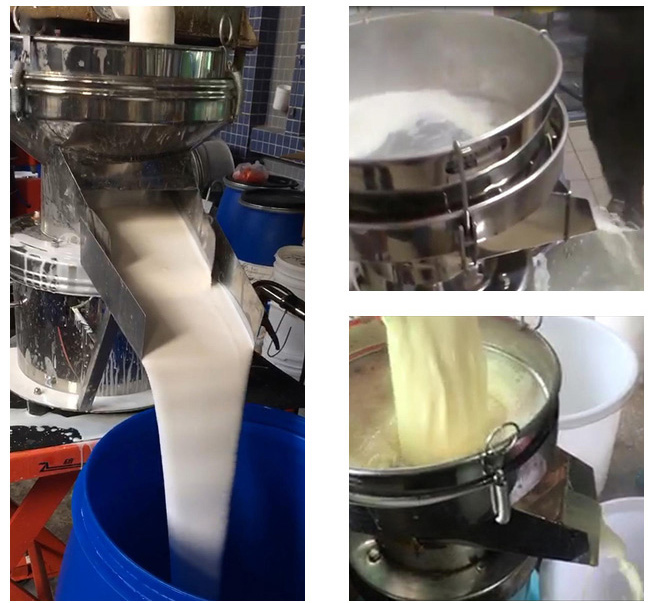

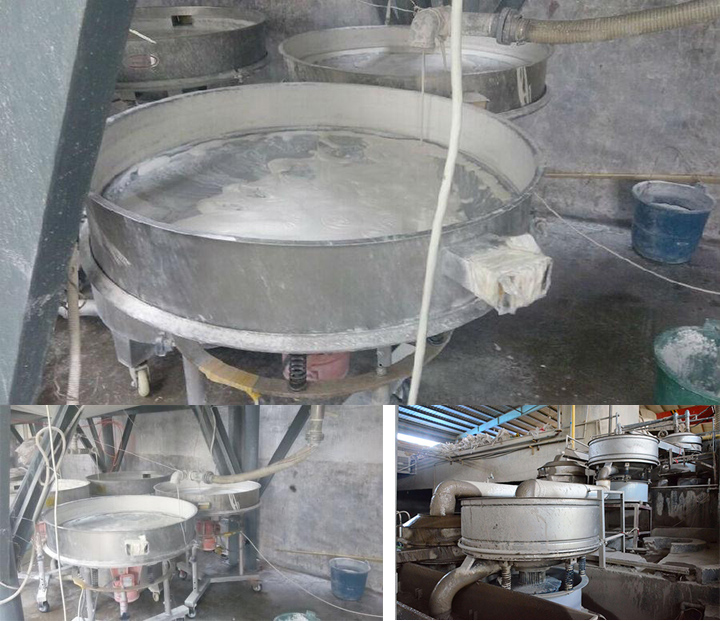

Product application display:
