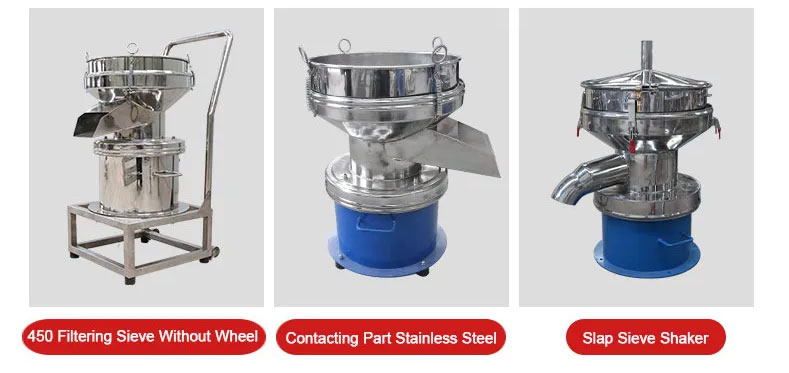

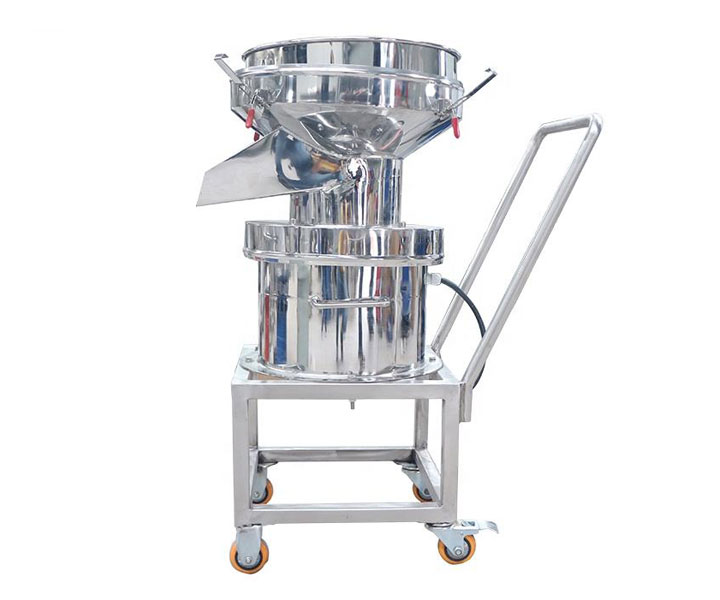

The single-layer vibrating screen integrating powder classification and liquid filtration is good at handling materials with small production volume or less impurities such as powder screening with large particle content and slurry filtration.
Price:$420.00-$600.00/Set
Consult now and enjoy a 10% discount
Function: Filter\screening\separation\sorting\sieving
Mesh size: 2-400 Mesh
Capacity: 400-1200KG/H
Layer(s): 1 Layer
Voltage: 220V/380V or as your request
Material: Stainless Steel 304
Frequency: 50/60 Hz
Applicable materials: soybean milk, fruit juice, paint, paint, latex paint, flour, sesame, etc.
Liquid filter is mainly used for filtration and impurity removal in the liquid industry. Especially for soy milk, fruit juice, paint, ceramics, lime slurry, mud, latex paint, etc., liquid filter is usually selected for filtering and impurity removal, and the screening effect is very obvious.
1. High screening efficiency, low noise, small volume, exquisite and durable design, powder, granule and mucus can be screened.
2. It is easy to change the screen, easy to operate and easy to clean.
3. The heightened design of the screen grid prevents the slurry from splashing, and the large observation port makes it easy to observe the screen surface.
4. The processing capacity is large, and the slurry and slag can be automatically discharged for continuous operation.
5. New grid structure, long screen life, short screen change time (3-5 minutes).
6. The motor has a waterproof and dustproof device, with long service life, simple operation and convenient maintenance.
Liquid filter uses a new type of vertical vibration motor as the vibration source. The upper and lower ends of the vertical vibration motor are equipped with eccentric weights, which can produce horizontal, vertical, and inclined three-dimensional motions. The exciting force is transmitted to the screen frame and the material through the receiving tray. To achieve a good classification. By adjusting the phase angle of the upper and lower eccentric weights, the movement trajectory of the material on the screen surface can be changed to ensure that the material is fully classified.
| Model | Screen area | Frequency | Power | Voltage | Layer | Screen range |
| DH-450 | Φ400mm | 1440 | 0.18 | 380V | 一 | 0.038-3mm |
Chemical industry: paint, ink, color paste, paint, latex paint, aluminum powder paste.
Food industry: starch, soy milk, fruit juice, beverages, milk products, condiments.
Other industries: mud, pulp, waste liquid, Chinese and Western medicine liquid, etc.
A liquid filter supplier is a type of company that provides liquid filters. A liquid filter is a device used to filter liquids such as water, oil, and gas, and is usually used in large quantities in industrial production. Liquid filters can effectively remove impurities, particles and pollutants in liquids, improve production efficiency and ensure product quality. Liquid filter suppliers usually provide various types of liquid filters, including filter elements, filter cartridges, filter sheets, etc., and provide customized solutions to meet the needs of different customers. Liquid filter suppliers play an important role in industrial production.
