Vibratory separatorSeparation of up to five sections of dry and wet material in a single pass
Price:$800.00-$4,500.00/Set
Consult now and enjoy a 10% discount
Screen diameter: 400-200mm
Layers: 1-5
Mesh: within 500 mesh (25 microns)
Capacity: 100-3300kg/h
Power: 0.18kW-2.2kW
Material options: carbon steel, 304 or 316 stainless steel, plastic
Application: Precise grading, grading, peeling or screening of wet or dry material in up to 5 different sized portions in one operation
Commitment:
Vibratory separation equipment is ideal for dry separation, wet or dry classification, and solid-liquid separation, and can screen powders, granules or liquids as fine as 500 mesh (30 microns) by selecting the appropriate mesh screen and stacking multiple sieve plates , the material can be graded into 5 sizes in one operation.

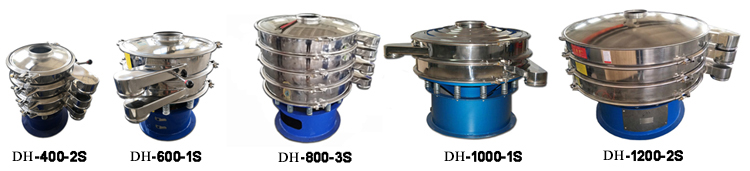

We offer circular vibratory separation equipment in 8 different sizes - 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm to meet your specific production needs. The oversized discharge port can also be rotated around the circumference to any position, which is convenient for material collection. Additionally, these units can be easily moved for use anywhere on the factory floor.
Vibrating Screen Separator
Capable of separating powders and granules from two to five different sizes/fractions of product, vibratory separators are equipped with sieves of one to four different pore sizes, the largest particles/fractions are removed from the separator at the top sieve deck , the finest particles are discharged from the bottom.
Mesh size: 2-500 mesh
Capacity: 100-3300kg/hour
Vibrating Filter Sieve
Designed for easy mobility, they are an excellent solution for screening oversized materials, eliminating suspended and unwanted particles present in the substance, they are designed to effectively filter aqueous applications as well as highly viscous substances. A control valve can be installed at the outlet to control the flow.
Mesh size: 400 mesh
Capacity: 400-1200kg/hour
Discharge Vibration Separator
Since the inlet and outlet are in the same vertical direction, the discharge speed is fast, and it is specially designed for high-capacity screening to protect the quality of powder by removing excessive contaminants, in raw material screening, in-process screening, pre-packaging screening And dust removal and other aspects of the performance is particularly outstanding.
Mesh size: 140 mesh
Capacity: 3-30 tons/hour
Vibratory separation equipment can be used for safe sieving to remove foreign matter, separation of solids in liquid, separation of different particle sizes in the same product, and one operation can provide up to 5 stages of separation.
1. Particle size separation: Divide particles and powders into particle segments of different sizes. A single separator can be equipped with 4 layers of screens, which can continuously separate 2-5 particle sizes.
2. Removal of impurities: In the process of high-flow treatment, it can quickly remove large or small particles with low percentage of slurry and slag separation, or quickly remove insoluble solid substances in various types of slurries.
Multiple Separations
Vibratory separation equipment stacks up to 5 sieve trays, saving time by screening up to five different sized materials at once
Accurate grading
Complete separation is achieved by controlling the product screening time for thorough and accurate grading.
Improve production quality
It is suitable for sieving from 36 microns to 25 mm, and with the addition of a special cleaning device, it prevents material clogging.
Increase production capacity
It allows throughputs from 100 to 25,000 kg/h, depending on the product, mesh size and feed flow to the machine.
Increase flexibility
The compact system is easy to operate and can be used at multiple points on the production line.
Improve working conditions
A rubber suspension system reduces noise output levels to 69 dBA.
| Model | Diameter (mm) |
Feeding Size (mm) |
Frequency (RPM) |
Layers | Power (kw) |
Capacity (kg/h） |
| DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 | 100 |
| DH-600 | 600 | 0.25 | 200 | |||
| DH-800 | 800 | 0.55 | 500 | |||
| DH-1000 | 1000 | 0.75 | 800 | |||
| DH-1200 | 1200 | 1.1 | 1200 | |||
| DH-1500 | 1500 | 1.5 | 1800 | |||
| DH-1800 | 1800 | 2.2 | 2000 |
Vibratory separation equipment can be designed with special structures according to different industries and products, as shown below:
| Customization | Ultrasonic Screen | Gate Type Screen | Filter Screen | High Frequency Screen |
| Image |  |
 |
 |
 |
| Application | Add ultrasonic cleaning device, which is conducive to the screening of ultra-fine and viscous materials and solves the problem of net blocking | The gate type design can prolong the screening time, improve the screening accuracy, and the material is more in and less out. | Specially designed for filtering liquids, suitable for slurries with low throughput and low impurities | Use a high-frequency vibration motor (3000 rpm) as the excitation source, suitable for filtering high-concentration slurries, such as ceramic glazes, etc. |
If you have other requirements, you can leave a message and let me know, we will design a suitable machine for you free of charge.
| PRODUCT | MESH OPENING | DH-400 | DH-800 | DH-1200 | DH-1500 |
| Milk powder | 400µ | 350Kg/h | 800Kg/h | 1.800Kg/h | 2.800Kg/h |
| Orange juice | 1000µ | 1.600l/h | 3.500l/h | 8.000l/h | 12.000l/h |
| Species (oregano, thyme, cinnamon…) | 600µ | 400Kg/h | 1.000Kg/h | 1.500Kg/h | 1.800Kg/h |
| Sweet pepper | 1000µ | 180Kg/h | 350Kg/h | 1.000Kg/h | 1.300Kg/h |
| Serum lactic | 50µ | 1.000l/h | 2.200l/h | 5.000l/h | 7.500l/h |
| Sugar glass | 150µ | 800 Kg/h | 2.000 Kg/h | 3.000 Kg/h | 3.500Kg/h |
| Wheat flour | 300µ | 300 Kg/h | 600 Kg/h | 1.350 Kg/h | 2.100Kg/h |
| High- Density Polyethylene | 3000µ | 600Kg/h | 1.300Kg/h | 3.000Kg/h | 4.500Kg/h |
| Ammonium sulfate | 350µ | 400Kg/h | 900Kg/h | 2.000Kg/h | 3.100Kg/h |
| Toner powder | 100µ | 90Kg/h | 170Kg/h | 400Kg/h | 600Kg/h |
| Glass powder | 100µ | 270Kg/h | 500Kg/h | 1.300Kg/h | 2.000Kg/h |
| Shredded tire | 1000µ | 300Kg/h | 650Kg/h | 1.500Kg/h | 2.200Kg/h |
| Purines | 125µ | 2.000l/h | 4.000l/h | 10.000l/h | 15.000l/h |
| PET recycled | 5000µ | 400Kg/h | 850Kg/h | 2.000Kg/h | 3.000Kg/h |
| Biofuel oil | 200µ | 800l/h | 1.600l/h | 4.000l/h | 6.100l/h |
| Acrylic paint | 80µ | 500l/h | 1.200l/h | 2.700l/h | 4.200l/h |
Since its establishment in 2008, Xinxiang Dahan vibratory separation equipment has provided complete assembly line services from design, production to sales, and is committed to solving various screening problems. The manufacturer has passed ISO: 9001 quality management system certification and EU CE certification, and is exported More than 80 countries and regions such as the United States, Russia, Malaysia, India, Australia, and Poland.
Vibrating Screen Separator for Pharmaceutical Particle Grading
