Multilayer Linear Vibrating Screen

Introduction of Multilayer Linear Vibrating Screen

Multilayer linear vibrating screen refers to a linear vibrating screen installed with 2, 3, 4, 5 or 6 layers of screen mesh, which can realize continuous classification of 7 kinds of products of different specifications in one operation for classification after coarse or medium crushing.

Multilayer linear vibrating screen with different layers

Under normal circumstances, the multilayer linear vibrating screen can do 6 layers. The best vibration force conduction effect is generally 3-4 layers. It is not recommended to add more than 5 layers. You can choose to use two sieves, one with high mesh and one with low mesh. (It is not recommended to add more than 6 layers. If there are too many layers, the exciting force of the vibrating motor of the linear vibrating screen cannot transmit the force well, so the linear vibrating screen with too many layers.)

Function of Multilayer Linear Vibrating Screen

The main function of the multilayer linear vibrating screen is to separate the mixed material into a variety of graded materials with different particle sizes. Simply put, the vibrating screen has multiple screens, and the mixed materials are separated into finished products with different fineness according to the mesh size of the screen.

Classification: It can be divided into one layer, two layers, three layers, etc. The more layers, the higher and finer the sieved material, and it is mostly used for the screening and grading of dry materials.

Impurity removal: separate impurities contained in the material, such as powdered materials containing larger particles.

Working Principle of Multilayer Linear Vibrating Screen

The Multilayer linear vibrating screen uses a vibration motor as the excitation source. Under the combined force of the excitation force and the material's own gravity, the material jumps or moves forward on the multi-layer screen surface, so as to achieve the purpose of screening and grading the material.

Benefits of Multilayer Linear Vibrating Screen

1. Materials can be screened into 2, 3, 4, 5, 6 or 7 different grades.

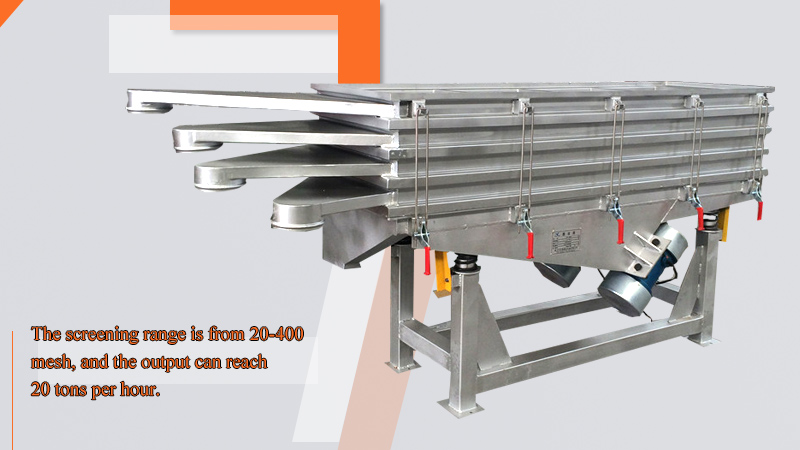

2. The screening range is from 20-400 mesh, and the output can reach 20 tons per hour.

3. Equipped with double motors, which are installed vertically to each other to obtain proper vibration flow. The arrangement of the double motors makes the screen frame move and vibrate in a straight line perpendicular to the motor, so that the super large particles have a good forward effect.

4. Equipped with an adjustable vibration motor, which can help achieve different speeds and vibration levels according to the degree setting.

5. The fully enclosed structure can ensure that there is no dust pollution during the screening process.

Related Videos

Multilayer linear vibrating screen for soy bean grading

6 layers linear vibrating screen

Technical Parameter of Multilayer Linear Vibrating Screen

Model Layer Screening Area
Mesh Size
Particle Size
Vibration Direction Angle
Screen Inclination
Dual Amplitude
DZSF-520 1-6 layers 500*2000 2-400 0.074-10 ≤3 0.37×2 45-60 0-7 3-4.5
DZSF-525 500*2500 ≤5 0.37×2
DZSF-612 600*1200 ≤8 0.37×2
DZSF-1020 1000*2000 ≤12 0.75×2
DZSF-1025 1000*2500 ≤16 0.75×2
DZSF-1030 1000*3000 ≤20 1.1×2
DZSF-1224 1200*2400 ≤23 1.5×2
DZSF-1525 1500*2500 ≤28 1.5×2
DZSF-1530 1500*3000 ≤32 2.2×2

Application of Multilayer Linear Vibrating Screen

Multilayer linear vibrating screen is suitable for screening and grading powder and granular materials, and is widely used in plastics, abrasives, chemicals, medicine, building materials, grain, carbon, fertilizers, mining, coal, smelting, building materials, refractory materials, light industry, etc. industry.
