Vibro Sifter for Metal Powder

Metal powder refers to a group of metal particles with a size of less than 1 mm. Including single metal powder, alloy powder and some refractory compound powder with metallic properties, it is the main raw material of powder metallurgy. Metal powder is conventionally divided into five grades: coarse powder, medium powder, fine powder, fine powder and superfine powder. Metal powders mainly include iron, tungsten, molybdenum, copper, cobalt, nickel, titanium, tantalum, aluminum, tin, lead and other powders, and their consumption accounts for more than 2/3 of the total output of metal powders. Metal powder can be used as a raw material for powder metallurgy products, and it can also be used directly.

Metal powder screening purpose

Vibro sifter removes impurities from metal powders and finely classifies them.

Processing materials: iron powder, aluminum powder, alloy powder, zinc powder, metal powder, silver powder, copper powder, tungsten powder, molybdenum powder, titanium powder, zirconium oxide and other metal powders

Output: 100-2000 kg

Screening mesh number: 80 mesh-500 mesh

Vibro sifter for metal powder is a clean and environmentally friendly screening device. Its design is to achieve a new type of screening device that removes impurities from metallurgical powder and fine grading under a fully balanced airtight condition.

Vibro sifter for metal powder is because the positive pressure airflow generated during the screening process is filtered through the unloading bag, unloading window or equipped with dust collector, so that the air pressure inside and outside the screen is balanced and even negative pressure is generated; therefore, the powder will not fly. , Environmental protection and green; the dust produced by this machine is below 10mg/m³. Ordinary sieving machine adopts a simple airtight method that only blocks the gas and does not exhaust. The movement of raw materials generates heat, which causes the gas to expand and hold it in the machine to form a vicious positive pressure gas. Therefore, no matter how tightly closed the ordinary sieving machine is, there must be dust.

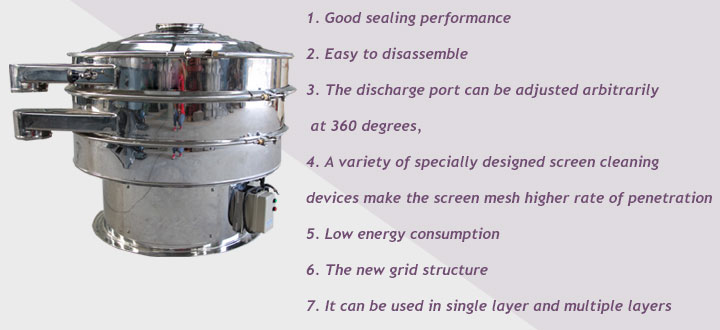

Features of Vibro sifter for metal powder

The metallurgical powder vibrating machine is widely used in the screening of molybdenum powder, tungsten powder, nickel powder, cobalt powder, copper powder and alloy powder. Its main features are as follows:

1. The air pressure inside and outside the metal powder oscillating screen is balanced, with a dust collector, dust-free and clean;

2. The metal powder oscillating screen components are rolled into shape at one time, modularized production, and good airtight performance.

3. It can be sieved to 600 meshes.

4. Recycle the dust into the dust collector to prevent material waste.

Xinxiang Dahan Machinery Co., Ltd. uses years of experience in metal powder screening and a number of patented technologies to provide you with a one-stop solution
