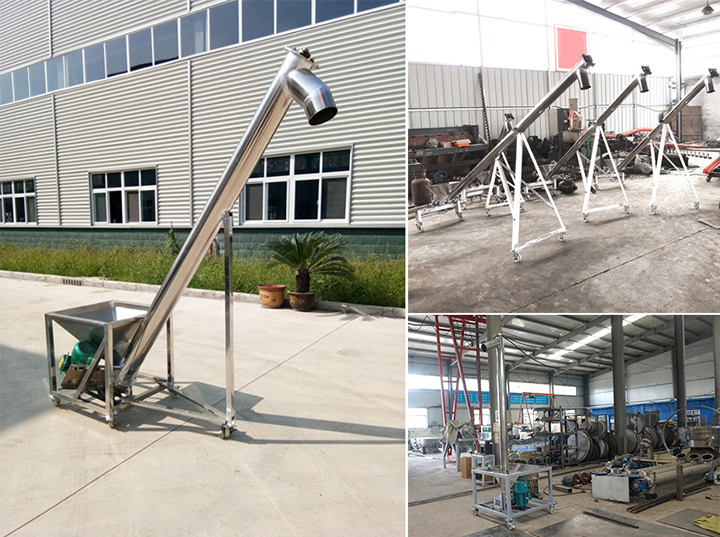

Composed of a caster-mounted frame, support frame and hopper, mobile screw conveyors are flexible enough to accommodate most applications and mobile system installation requirements, allowing for in-plant flexibility. So what is the price of a mobile screw conveyor? The details will be introduced below.
| Model | Diameter | Pitch(mm) | Speed (r/min) | Delivery volume (m³/h) | Speed (r/min) | Delivery volume (m³/h) | Speed (r/min) | Delivery volume (m³/h) | Speed (r/min) | Delivery volume (m³/h) | Price (USD/unit) | |
| (mm) | ||||||||||||
| Small | 100 | 100 | 100 | 140 | 2.2 | 112 | 1.7 | 90 | 1.4 | 71 | 1.1 | 400-992 |
| 125 | 125 | 125 | 125 | 3.8 | 100 | 3 | 80 | 2.4 | 63 | 1.9 | ||
| 160 | 160 | 160 | 112 | 7.1 | 90 | 5.7 | 71 | 4.5 | 56 | 3.6 | ||
| 200 | 200 | 200 | 100 | 12.4 | 80 | 9.9 | 63 | 7.8 | 50 | 6.2 | ||
| Medium | 250 | 250 | 250 | 90 | 21.8 | 71 | 17.2 | 56 | 13.6 | 45 | 10.9 | 900-2670 |
| 315 | 315 | 315 | 80 | 38.8 | 63 | 30.5 | 50 | 24.2 | 40 | 13.4 | ||
| 400 | 400 | 355 | 71 | 62.5 | 56 | 49.3 | 45 | 38.6 | 36 | 31.7 | ||
| Large | 500 | 500 | 400 | 63 | 97.7 | 50 | 77.6 | 40 | 62 | 32 | 49.6 | 2220-5183 |
| 630 | 630 | 450 | 50 | 138.5 | 40 | 110.8 | 32 | 88.6 | 25 | 69.3 | ||
| 800 | 800 | 500 | 40 | 198.5 | 32 | 158.8 | 25 | 124.1 | 20 | 99.3 | ||
The above prices are for reference only. According to different design requirements, the price of mobile screw conveyors will vary:
1) Material
There are two types of mobile screw conveyors: carbon steel and stainless steel. Under the same model, the mobile screw conveyor made of carbon steel is 74-500 US dollars cheaper than the one made of stainless steel.
2) Length
The longer the length of the mobile screw conveyor (the distance between the inlet and outlet), the more expensive the price. If it exceeds 10 meters, the transmission form is complicated, and the price needs to be calculated separately.
3) Special requirements
Different inclination angles and feed hoppers of different sizes can be selected according to requirements, and the actual price needs to be calculated according to the selection.
The above is the introduction of the price of the mobile screw conveyor, I hope it can help you. Dahan mobile screw conveyor direct selling price, the price is cheap.
