Application of Linear Vibrating Screen in Feed Production

The development of diversified aquaculture has made feed production a popular industry. However, the fierce competition requires more and more strict requirements on the uniformity of feed particle size distribution, the fineness of feed raw materials and the cleanliness of extruded feed. Therefore, before the feed enters the packaging It is necessary to classify and remove impurities for materials with different particles.

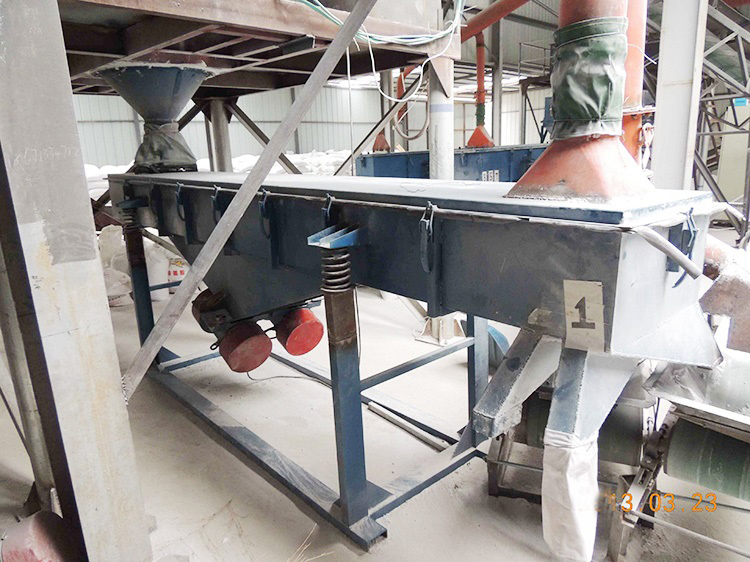

In feed production, the Linear Vibrating Screen can be used for the screening of feed raw materials and the screening of pellet feeds.

1. Feed raw materials:

Types of raw materials: rice bran powder, grain, soybean meal, bone meal, calcium powder and other trace element additives;

Screening mesh: 10-80 mesh

Screening output: 500kg-1000kg

Configuration scheme:Linear Vibrating Screen

Equipment application description:

grain products---screening---moisturizing---peeling---crushing---screening

When the Linear Vibrating Screen is used in the screening of feed raw materials, it is mainly used to process feed raw materials or raw material additives, and the purpose is to remove impurities and large raw material particles.

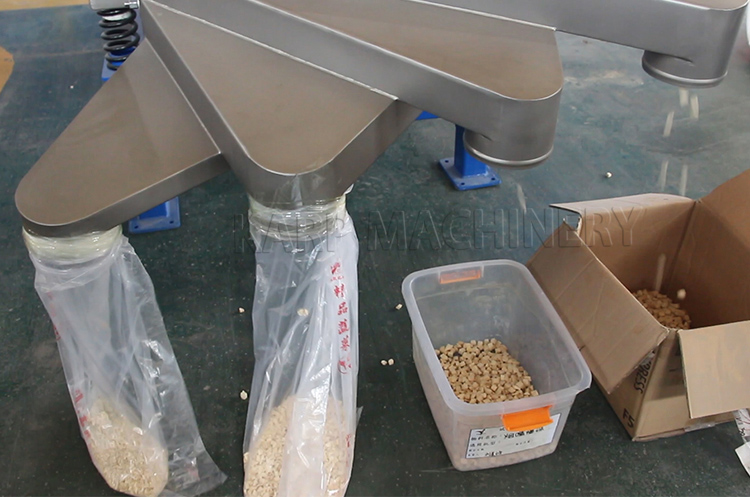

2. Pellet feed:

Pellet feed types: pelleted feed, crushed feed, extruded feed

Screening mesh: 1.5mm-60 mesh

Screening output: 2 tons - 20 tons

Configuration scheme:Linear Vibrating Screen

Equipment application description: feed raw material---mixer---reaction kettle---drying equipment---crushing or granulating---screening---packaging

The purpose of the linear sieve for particle feed screening is to ensure the uniform particle size of the feed and to remove agglomeration and powder feed before the feed is packaged.

Advantage:

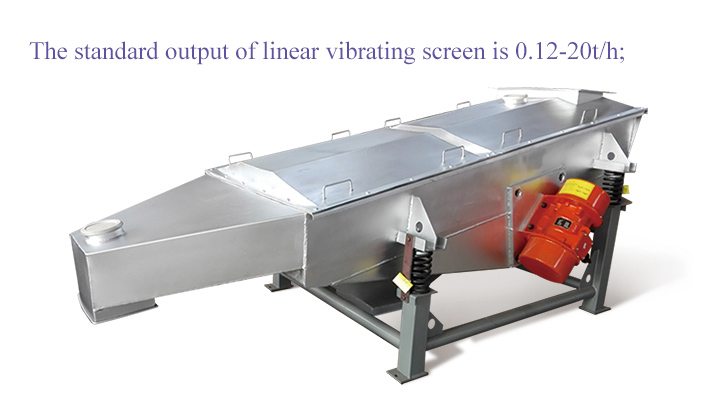

The output is large. The standard output of linear vibrating screen is 0.12-20t/h;

Do not block the network. The Linear Vibrating Screen frame comes with a net-clearing pinball to prevent irregular particles that are not completely crushed from clogging the mesh;

Automatic nesting. Impurities and feed can be automatically discharged directly into processing or packaging equipment.

Adjustable inclination. The inclination angle of the screen surface can be adjusted according to the specific conditions of the feed and the production demand.
