Inclination Angle of Inclined Screw Conveyor

The inclined screw conveyor usually runs from slightly above the horizontal position to a 45 degree angle with the horizontal position, which can convey and lift at the same time, one equipment completes two operations, different types of screw conveyors have different inclination angles, this article will give you details 's explanation.

Maximum angle of inclined screw conveyor

Different types of screw conveyors have different conveying angles. Inclined screw conveyors are divided into shaft and shaftless according to the conveying materials, and can be divided into two types: tubular type and U type according to the shape.

1. Shaft series

The conveying angle of the shafted tubular screw conveyor is about 45°, while the conveying angle of the shafted U-shaped screw conveyor is about 20°-30°.

2. Shaftless series

The conveying angle of the shaftless tubular screw conveyor is about 30°, while the conveying angle of the shaftless U-shaped screw conveyor is about 20°-30°.

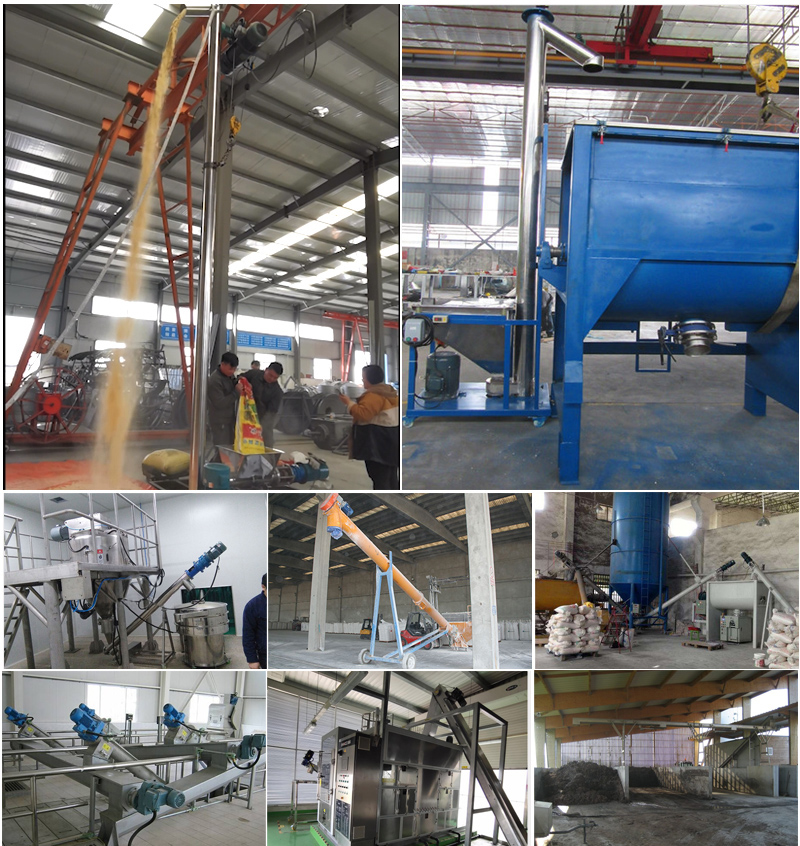

The above are the conveying angles of different types of inclined screw conveyors, and the following shows the on-site pictures of inclined screw conveyors with different angles:

The larger the angle of the inclined screw conveyor is, the worse the conveying effect will be (no effect within 15°, and the conveying efficiency will be reduced by 15% for every 5° increase). At this time, a high-power vibration motor needs to be selected.
