GZV-5 electromagnetic vibrating feeder

GZV-5 electromagnetic vibrating feeder‌ is used in the production process of feeding, batching and quantitative automatic packaging of powdery and granular materials, and can realize centralized control and automatic control. Compared with other forms of feeders, GZV-5 electromagnetic vibrating feeder has the characteristics of small size, light weight, simple structure, low power consumption, and stepless adjustment of feeding amount. ‌

By using the automatic amplitude stabilization control box of the electromagnetic vibrating feeder, it is not affected by the fluctuation of power supply voltage, which improves the feeding accuracy. The technical parameters of the GZV-5 electromagnetic vibrating feeder include productivity, double amplitude, vibration times, rated voltage, rated current and active power. ‌

Working principle of GZV-5 electromagnetic vibrating feeder ‌

GZV electromagnetic vibrating feeder is a double-mass resonance vibrating feeder. The electromagnetic vibrator and the feeder tank together constitute the double-mass vibration series. Half of the converted mass of the leaf spring group and the mass of the material in the trough are elastically connected with the mass of the bright body, iron core, coil and half of the converted mass of the leaf spring group by the leaf spring group to form a double-mass vibration system. ‌

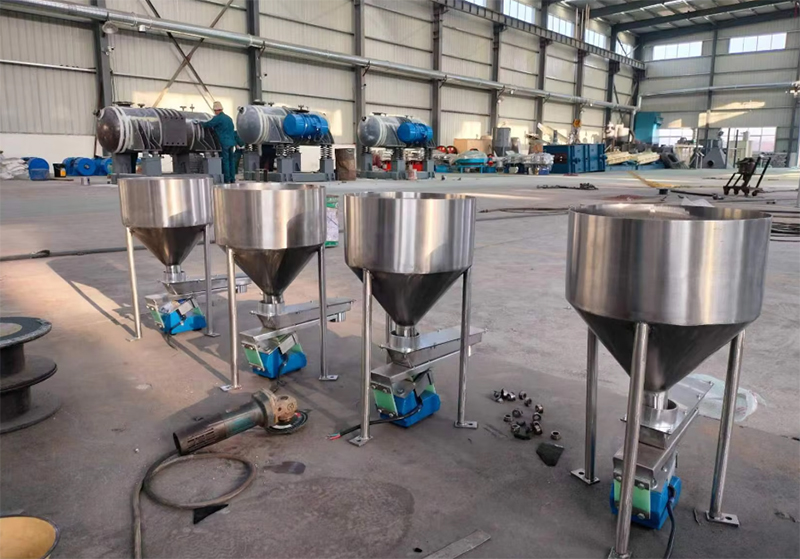

The micro electromagnetic vibrating feeder (vibrating feeder) is equipped with a control box that can realize manual and automatic adjustment. The micro feeder is a seat-type structure and only needs to be placed on the workbench when working. In addition, one or two layers of screens can be added to the feed trough to become a small vibrating screening equipment. ‌

Application of GZV-5 electromagnetic vibrating feeder ‌

GZV-5 electromagnetic vibrating feeder is mainly used in various industries such as chemical light industry, food, medicine, and commerce. It is used for feeding granular and powdery materials. The batching and quantitative automatic packaging can realize centralized control and automatic control of the production process.
