How to choose u-type screw conveyor?

When choosing a U-type screw conveyor, there are several factors to consider to ensure that the conveyor is suitable for your specific needs. Here are some tips on how to choose a U-type screw conveyor:

I. product quality

1. Material characteristics

It is important to consider the characteristics of the material being conveyed, such as particle size, density, and moisture content, to ensure that the U-type screw conveyor is suitable for the specific material.

2. Capacity and Speed

Consider the required conveying capacity and speed to ensure that the U-type screw conveyor can meet the production requirements.

Specification		Main technical performance	Drive device	Drive device			Weight(kg)
Diameter	Length(m)	Yield( t/h)	Rotating speed(min)	Reducer		Electric motor
Diameter	Length(m)	Yield( t/h)	Rotating speed(min)	Model	Speed ratio	Power(kw)
U 200	-10	9	60	ZQ250	23.34	1.1	726
U 200	-20	9	60	ZQ250	23.34	1.5	1258
U 250	-10	15.6	60	ZQ250	23.34	2.2	960
U 250	-20	15.6	60	ZQ250	23.34	3	1750
U 300	-10	21.2	60	ZQ350	23.34	3	1373
U 300	-20	21.2	60	ZQ350	23.34	4	2346
U 400	-10	51	60	ZQ400	23.34	5.5	1911
U 400	-20	51	60	ZQ500	23.34	11	2049
U 500	-10	87.5	60	ZQ400	23.34	7.5	2381
U 500	-20	87.5	60	ZQ650	23.34	18.5	5389
U 600	-10	134.2	45	ZQ750	23.34	22	3880
U 600	-10	134.2	45	ZQ850	23.34	55	7090

3, sealing test, U groove and dust cover fitting tight

U-shaped spiral conveyor will be covered with a dust cover to ensure the sealing of the whole machine, dust cover and u-shaped groove fit tight directly affect the sealing effect of the whole machine, when selecting manufacturers, we must carefully check the dust cover and u-shaped groove fit tight degree.

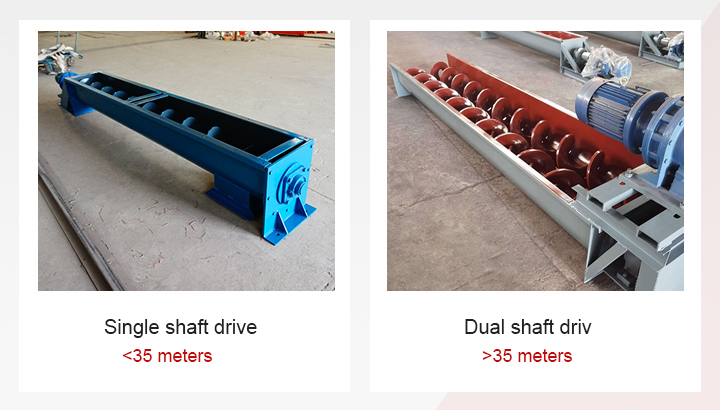

4, drive mode, more than 35 meters, must use dual drive

Some manufacturers in order to save product manufacturing costs, U spiral conveyor length more than 35 meters, still choose to use a single drive, the whole machine's transmission efficiency and throughput will be greatly reduced, so in the selection of manufacturers, we must choose the product manufacturing costs strictly controlled!

Second, the strength of manufacturers

1. Technical strength

Dahan has more than 400 technical backbone, including more than 50 doctors, over the years to all walks of life users design tens of thousands of production lines, the total production of 100,000 sets of equipment, manufacturers strength is guaranteed, the quality of equipment is guaranteed!

2. Cooperative users

Hong Kong university of science and technology, China university of mining and technology, jiangxi copper lead and zinc research institute, sichuan institute of water resources and hydropower, etc., sanjing pharmaceutical, taiji group, jiangzhong pharmaceutical, sanjiu group, etc., are all the cooperative users of xinxiang dahan for many years. Dahan has been unanimously recognized by outstanding enterprises and professional research institutions.
