Mini vibrating sieve refers to the smaller vibrating sieve, generally 400mm and 600mm diameter mini vibrating sieve, the output can reach 100kg-500kg per hour, can be used in industries with small output, the whole machine is small in size and takes up less space , Easy to operate and move.

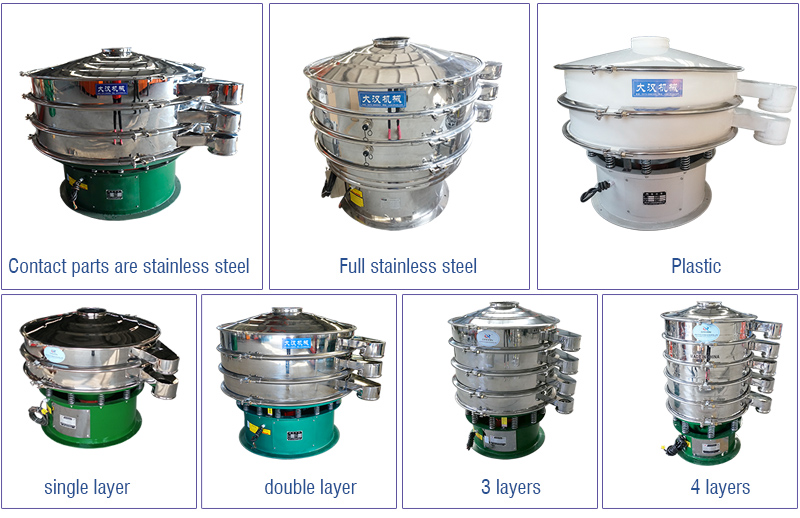

Xinxiang Dahan mini vibrating sieve is divided into three materials: carbon steel, stainless steel, and plastic. Carbon steel can be used for general materials, and the cost is low. Screening of strong alkali materials. In addition, mini vibrating sieve can choose 1-4 layers of screens, which can separate one material into 2-5 different particle sizes at the same time.

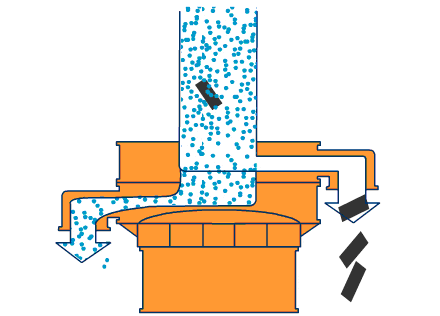

The material enters the mini vibrating sieve through the feeding port. According to different screening requirements, the material passes through 1-5 layers of sieves with different meshes. The device continuously hits the screen, so that the material can be screened smoothly, and effectively avoid the problem of material blocking. Ultimately achieve the purpose of filtering or filtering.

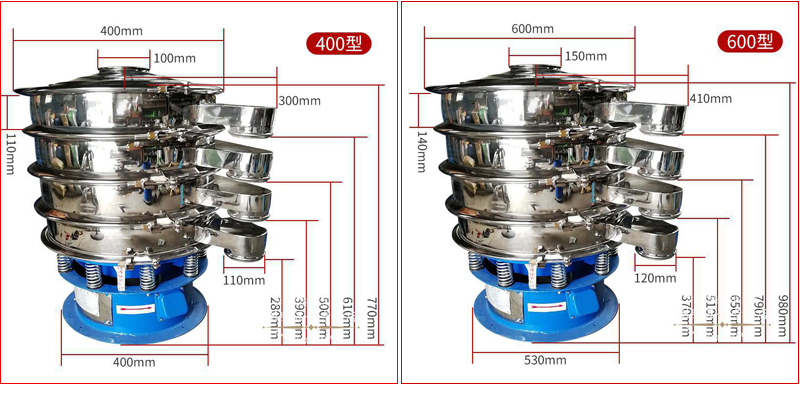

| Model | Screening diameter (m/m) | Feeding size (mm) | Rotating speed (r/min) | Voltage (v) | power (kw) | Processing capacity (kg/h) |
| DH-400 | 350 | ＜10 | 1440 | 380 | 0.18 | 100 |
| DH-600 | 550 | ＜10 | 1440 | 380 | 0.25 | 500 |
sieve laundry detergent
sieve alumina powder

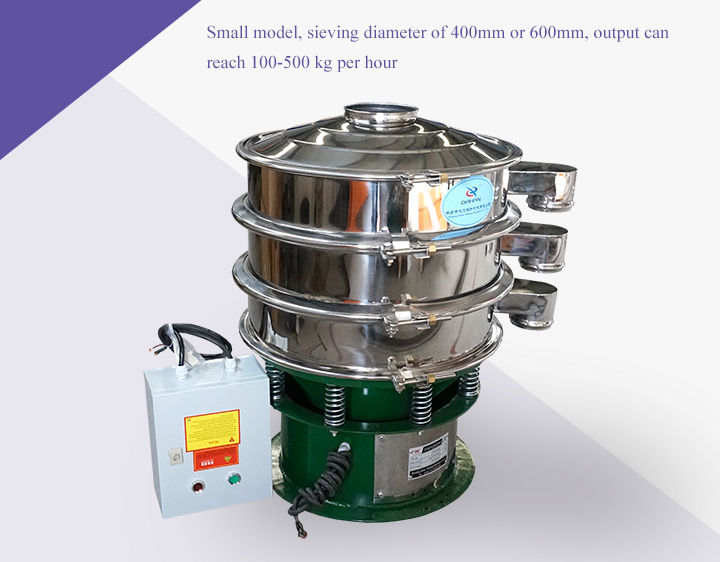

1. Small model, sieving diameter of 400mm or 600mm, output can reach 100-500 kg per hour.
2. The mesh is not blocked, the powder is not flying, and it can be sieved to 400 mesh or 0.028mm.
3. Small size and easy to move.
4. Impurities and coarse materials are automatically discharged, and the discharge port can be rotated 360°.
Whether the material is dry or wet, fine or coarse, specific gravity or light, it can be filtered from 0-400 mesh, and whether it is liquid or slurry, 0-600 mesh can be filtered.

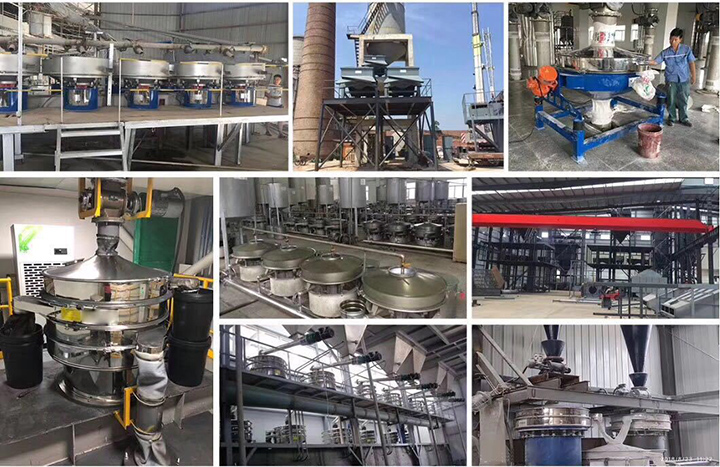

Chemical industry: resin, paint, industrial medicine, cosmetics, paint, Chinese medicine powder, etc.
Food industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy carbonic acid Calcium, quartz sand, etc.
Pollution treatment: waste oil, wastewater, dyeing and finishing wastewater, additives, activated carbon, etc.
Since the establishment of Xinxiang Dahan factory for 14 years, product quality has always been placed in an important position. From raw material procurement, production, testing, and finished products to delivery according to standardized operations, the company has won ISO9001 certification and EU CE certification, and mini vibrating sieve has obtained "three-dimensional" registration. Trademarks, 30-day quality assurance for products, 1-year warranty, during which the loss caused by quality will be repaired by Dahan free of charge. The manufacturer has a dedicated production team, assembly team, logistics tracking team, - the whole set of project drawings, can be quickly issued within 2 hours, no steps are subcontracted, shorten the construction period, reduce rework, standard parts stock in stock, 7 working days for special customization, The supply is fast and the cycle is guaranteed.
