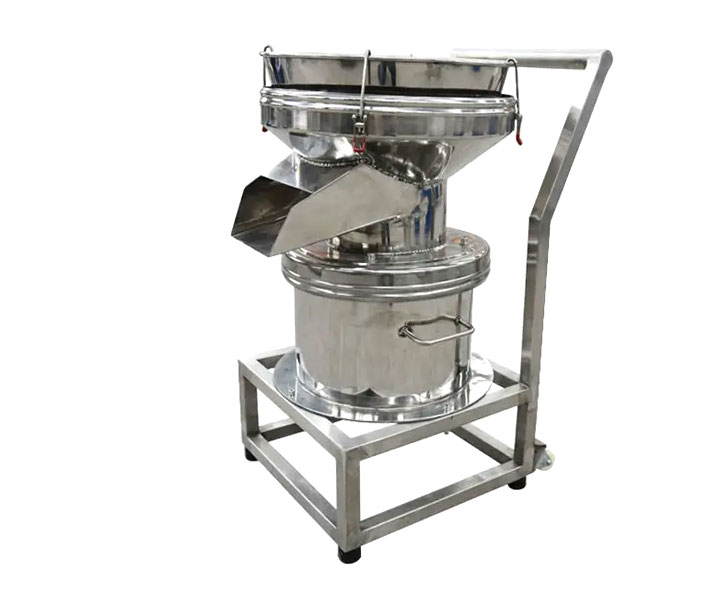

Filter Sieve With Trolley

Introduction of Filter Sieve With Trolley

Filter sieve with trolley is a special device added to the ordinary filter sieve, which can be easily moved. It is fixed on the trolley, and you can move it at any time when you need to use it.

Filter sieve with trolley removes unwanted particles present in liquid or suspended matter for any process that requires the separation of fibrous solids from liquids, reducing wastewater treatment costs and reducing product waste, this separator is easy to operate and simplifies The separation process is easy for liquid breaks and cleaning, and maintenance is easy with just one operator.

Working Principle of Filter Sieve With Trolley

Filter sieve with trolley is a common filter sieve driven by a heavy hammer to vibrate, and the screen body produces horizontal, vertical and inclined three-dimensional motion, so that the material is thrown up on the screen and spreads out from the center to the outlet for discharge. , During the movement of the material on the screen, fine particles or liquids pass through the screen. By choosing and installing the corresponding screen and the number of screen layers, the material can be screened and graded or filtered. Sort automatically

Benefits of Filter Sieve With Trolley

1. Install trolleys and mobile casters for easy movement around the factory when needed.

2. The large-diameter discharge channel is adopted, and the material is discharged quickly, and it can process 1200kg of slurry and powder per hour.

3. The 304 stainless steel material is mirror polished, and all welded joints are seamless, ensuring that there is no material deposition and the possibility of material contamination is zero.

4. The heightened design can effectively prevent the slurry from splashing, and the large observation port makes it easy to observe the screen surface.

5. Using waterproof and dustproof vibration motor, it can work continuously for 24 hours in humid or dusty environment.

Related Videos

Technical Parameters of Filter Sieve With Trolley

Model	Screen area	Frequency	Power	Voltage	Layer	Screen range
DH-450	Φ400mm	1440	0.18	380V	一	0.038-3mm

Application of Filter Sieve With Trolley

Filter sieve with trolley is suitable for single-layer screening and filtration of manufacturers in various industries. It is widely used in food, ceramics, medicine, chemical, paint, metallurgy and other industries. It is used in fast food restaurants, chain distribution centers, and pastry shops. There are successful application precedents in the screening of powder, the filtration of fruit and vegetable juice, and the filtration of soy milk. It is suitable for processing materials with low production volume or low impurities, such as: powder screening and slurry filtration with large particle content; 325 mesh filtration for spray paint with a specific gravity of 1.1, up to 1200 liters per hour, and 30 mesh sieving flour can be processed per hour 700 kg. Made of stainless steel (304), the model is compact, light in weight, can be moved at will, and does not take up space.

Chemical industry: paint, ink, color paste, paint, latex paint, aluminum powder paste.

Food industry: starch, soy milk, fruit juice, beverages, dairy products, condiments.

Other industries: mud, pulp, waste liquid, Chinese and Western medicine liquid, etc.
