Introduction of Circular Vibratory Sifter

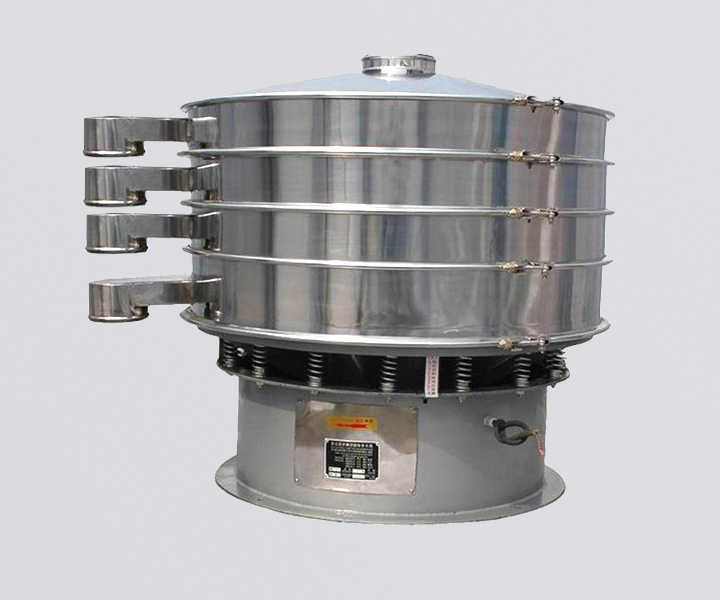

Circular Vibratory Sifter

Circular vibratory sifter is a circular unitary gylatory screen with a wide variety of uses for separating the mass composition of solids from solids and grading materials according to particle size., due to the simple adjustment of the counterweights on the motor shaft and the three-dimensional vibrations they produce, It can screen, classify, dedust and filter all kinds of products, even fine products can achieve good results.

types of circular vibratory sifter

On each circular vibratory sifter you can install 1 to 5 separation stages, resulting in 2 to 6 product classifications, suitable for 2-500 mesh sieving, various models (from Ø 400 to Ø 2200 mm) can satisfy For any type of requirements, the processing capacity of 100-3300kg/h is allowed, and various models such as carbon steel, 304 stainless steel and plastic are complete. According to the needs of special industries, it can also be designed as gate type, edge type and other models.

Function of Circular Vibratory Sifter

circular vibratory sifter can handle dry, wet, lumpy, viscous and other difficult-to-handle materials

1.Removal of impurities: high-flow powder material processing, quickly remove large particles or fine powder with little content.

2.Grading and screening: Continuously select mixed materials of different particle sizes, and classify them into different particle size grades. The circular vibratory sifter can be divided into one layer, two layers, three layers, four layers, etc. The more, up to 5 stages of product separation can be continuously filtered in just 1 operation.

3.Solid-liquid separation: Quickly remove insoluble solids in various slurries, and remove unqualified impurities or suspended substances from the slurries.

Working Principle of Circular Vibratory Sifter

Circular vibratory sifter uses a vertical vibration motor as the excitation source. The eccentric weight at the upper and lower ends of the vibration motor converts the rotational motion into a horizontal, vertical, and inclined three-dimensional motion, and transmits it to the screen surface of the rotary vibrating screen; The feed inlet enters the equipment. According to different screening requirements, the material passes through the 1-5 layers of screens with different meshes. In this process, the cleaning devices located under the screens of each layer continue to hit the screen. The mesh enables the materials to be screened smoothly and effectively avoids the problem of material blockage. The materials of different meshes pass through the screens of the corresponding meshes of each layer or are discharged through the outlets set on each layer, and finally realize the screening or Purpose of filtering. Adjusting the phase angle of the upper and lower ends of the motor can change the movement trajectory of the material on the screen surface.

Benefits of Circular Vibratory Sifter

Sieve in fine mesh

Thanks to the simple adjustment of the counterweights on the motor shaft and their three-dimensional vibration, our circular vibratory sifter can screen, sort, dedust and filter, it is suitable for sieving from 36 microns to 25 mm.

High throughput

Available in four different diameters: 16" (400mm), 24" (600mm), 30" (800mm), 40" (1000mm), 48" (1200mm), 60" (1500mm), 60" inches (1500 mm) allows throughputs from 100 to 25,000 kg/h,

5 levels grading

The circular vibratory sifter can provide up to 5 levels of classification in one operation for precise particle size distribution.

Low noise levels

Rubber suspension system dampens mechanical noise, ensuring quiet operation, reducing noise level to 69 dBA

Small footprint

The compact form requires minimal headroom and fits easily into your existing production line.

Reduce cleaning downtime

Tool-free, quick-release mechanism facilitates disassembly and cleaning.

Models of circular vibratory sifter

Technical parameters of Circular Vibratory Sifter

Model classification

Model	Diameter (mm)	Feeding Size (mm)	Frequency (RPM)	Layers	Power (kw)	Capacity (kg/h）
DH-400	400	<10	<1500	1-5	0.18	100
DH-600	600				0.25	200
DH-800	800				0.55	500
DH-1000	1000				0.75	800
DH-1200	1200				1.1	1200
DH-1500	1500				1.5	1800
DH-1800	1800				2.2	2000

Structure & Detailsof Circular Vibratory Sifter

structure of circular vibratory sifter

Circular vibratory sifter dust cover, screen frame, screen, net frame, net cleaning device, motor (vibration source), shock-absorbing spring, base and other parts.

Dust cover: It is composed of feed inlet and inclined cone, and its lower end is connected with the screen frame to prevent the workshop dust from falling into the material when the vibrating screen is working. Commonly used materials are stainless steel, carbon steel and plastic. 3 other materials.

Vibration motor: vertical vibration motor, divided into four specifications: 2, 4, 6, 8, and horizontal. The number of vibrations is 2870, 1460, 980, 740RPM, and can be designed as explosion-proof type (flammable and explosive occasions)

Grid: Models are φ600, 800, 1000, 1200, 1500, 1800, etc. The materials are stainless steel, carbon steel, and plastic.

Cleaning device: to clean the blocked materials in the mesh of the screen to increase the output. It is made of silicone and rubber. Ultrasonic cleaning device (635 mesh fine powder with static electricity) can also be selected.

Shock-absorbing springs: There are 12-20 vibration-isolating springs along the vibration transmission body.

Sealing ring: divided into ordinary rubber and food silicone. Food silicone strips are mostly used in industries with special requirements such as the food industry and the pharmaceutical industry to prevent external impurities such as dust and moisture from invading the internal components of the machine and equipment.

Dimensions of Circular Vibratory Sifter

Dimensions

Model	A	B	C	D	E	F	G	H	I
DH-400-1S	380	280	150	400	100	70	280	715	350
DH-400-2S	380	280	150	400	100	70	280	825
DH-400-3S	380	280	150	400	100	70	280	935
DH-600-1S	530	430	200	600	100	85	410	730	350
DH-600-2S	530	430	200	600	100	85	410	875
DH-600-3S	530	430	200	600	100	85	410	1020
DH-800-1S	680	580	200	800	125	100	540	800	390
DH-800-2S	680	580	200	800	125	100	540	945
DH-800-3S	680	580	200	800	125	100	540	1090
DH-1000-1S	800	700	250	970	150	120	645	870	460
DH-1000-2S	800	700	250	970	150	120	645	1015
DH-1000-3S	800	700	250	970	150	120	645	1160
DH-1200-1S	970	850	250	1170	180	140	740	990	510
DH-1200-2S	970	850	250	1170	180	140	740	1055
DH-1200-3S	970	850	250	1170	180	140	740	1220
DH-1500-1S	1180	1060	250	1470	200	140	960	1060	560
DH-1500-2S	1180	1060	250	1470	200	140	960	1230
DH-1500-3S	1180	1060	250	1470	200	140	960	1400
DH-1800-1S	1480	1360	350	1770	200	140	1140	1140	640
DH-1800-2S	1480	1360	350	1770	200	140	1140	1310
DH-1800-3S	1480	1360	350	1770	200	140	1140	1480

Product Customization

custom type of circular vibratory sifter

In addition to the standard circular vibratory sifter, the circular vibratory sifter can also be specially customized (non-standard) according to different material screening requirements.

Custom Options

Edged type: The feeding port is designed to be heightened and protected. The edged design can increase the feeding amount, prevent the material from splashing, and observe the condition of the screen.

Gate type: The design of the customs gate can control the residence and screening time of materials on the screen, ensure the processing accuracy of difficult-to-screen materials (viscous and fine materials), and increase the processing capacity.

Application of Circular Vibratory Sifter

Application

Circular vibratory sifter can remove oversize and contaminants as an effective way to protect ingredients and final product from contamination and caking, thereby improving the quality of your product, separates the quality components of solids from solids and graded materials based on particle size , widely used in food processing, powder processing, feed processing, medicine, chemical and other industries.

Typical Application:

Product	User Requirements	Recommended Products	Product	User Requirements	Recommended Products
Date puree	Separate jujube paste and jujube husk	DH-400-1S	Paprika	Machine installed with 60 meshes, sieving oily and sticky chili noodles requires 1 ton/hour	DH-1200-1S
Mine tailings	About 0.075 to 0.5mm Laboratory use Continuous feeding	DH-400-1P	Flour	400 kg/h 140 mesh	DH-1800-1S
Rapeseed	Rapeseed removal of impurities, the output is 200 kg per hour	DH-400-1S	Corn starch	Moisture content is less than 5%, output is 600kg/h, the discharge of the first layer is ≤1mm, the discharge of the second layer is 1-10mm, the discharge of the third layer is ≥10mm, and the discharge of the fourth layer is 10-20mm	DH-600-3S
Soy	Used to remove pebbles and fine sand in soybeans soaked in water	DH-600-1S	Lime slurry	The concentration is 15%, and the required output is 20t/h	DH-1200-1P
Mineral powder	Sticky materials, 80-mesh screen, 30% impurities, 1-2 tons per day	DH-600-1S	After the active	Bulk density 0.4-05g/cm3, required output 800-1000kg/h	DH-1200-1P

Adjustment Method of Upper And Lower Weight of Circular Vibratory Sifter

2Adjustment method of upper and lower weight

Circular vibratory sifter uses a vertical motor as the excitation source. The eccentric hammers installed on the top and bottom of the motor turn the rotary motion into vertical, horizontal and inclined three-dimensional motion, and transmit the motion to the screen surface. By adjusting the two eccentric hammers The phase angle between them can change the motion path.

1. When the angle between the upper and lower eccentric blocks of the motor is adjusted to 0 degrees, the material will be dispersed from the middle to the surrounding, which is used to screen a large number of rough materials.

2. When the angle between the upper and lower eccentric blocks of the motor is adjusted to 15 degrees, the material will be dispersed in a vortex, which is used to screen general materials.

3. When the angle between the upper and lower eccentric blocks of the motor is adjusted to 45 degrees, the material will be dispersed in a rapid vortex shape, and the movement track of the material on the screen surface is the longest, which is mainly used to screen fine materials.

4. When the angle between the upper and lower eccentric blocks of the motor is adjusted to 90 degrees, the material will be concentrated from the surrounding to the middle, which is suitable for wet filtration.

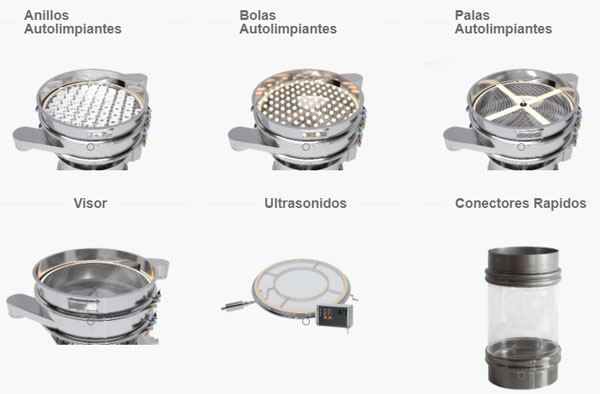

Optional equipment

1. Screen cleaning system: bouncing ball, cleaning brush, ultrasonic deblinding system 2. Seal: silicone or rubber material, diameter is 400-2000mm 3. Machines with one, two, three or four decks. 4. Various power supply voltages: 110V 220V 240V 380V 415V 450V and 550V, different power supply frequencies, 50HZ or 60HZ, even single-phase electricity. 5. Provide moving wheels, observation holes, valves, magnets, frequency converters according to user requirements. 6. Labeling service and OEM orders are available.

Proof of Solutions for Our Wide Range of Products

Customer case

Material	Proportion	Mesh size	Method	Capacity ((kg/hr T/hr))	Model
wheat starch	1	250 mesh	wet	3200 T	DH-1200-1S
flour	0.6	24 mesh	Dry	1500㎏	DH-1000-1S
soy sauce	1	100 mesh	wet	6500 T	DH-1200-1S
salt	1.2	30/80 mesh	Dry	5000㎏	DH-1500-1S
corn starch	0.6	40 mesh		1600㎏	DH-1000-1S
medicine powder	0.8	80 mesh		550㎏	DH-800-1S
PVC resin	1	10㎜/5㎜		3000㎏	DH-1200-2S
Polyethylene powder	0.45	48/100 mesh		100㎏	DH-800-2S
graphite	1.2	16/40/80 mesh		1400㎏	DH-1000-3S
lead powder	11.34	10/80 mesh		1000㎏	DH-1000-2S
corundum	4	60 mesh		300㎏	DH-1000-1S
aluminum powder	0.9/1.2	80/120 mesh		350㎏	DH-800-2S
electrode powder	0.95	20/200 mesh		550㎏	DH-1000-2S
Kaolin	0.4	100 mesh		200㎏	DH-1000-1S
mud	1.1	250 mesh	wet	3200㎏	DH-1000-1S

Circular Vibratory Sifter Manufacturers

Xinxiang Dahan circular vibratory sifter manufacturer was formally established in 2008, with a modern industrial plant of 10,000 square meters, dedicated to powder, granule, liquid sieving, impurity removal and filtration, providing customers with professional solutions and mature supporting products, products The screening range covers 0-3mm coarse powder, 20-200 mesh fine powder/granule, 400-500 mesh ultrafine powder, and slurries within 5 microns.

Service: The manufacturer has a dedicated online service and Q&A service, which can achieve the service effect of rapid online response, and a dedicated service will be provided within 3 minutes.

Quality: The products of Dahan manufacturers have passed ISO/CE quality certification. For quality problems, the manufacturers promise that they will be refunded in full within 365 days of natural damage, and will be exempted from maintenance for life.
