What Is A Z Type Belt Conveyor?

Z type belt conveyor is a special form of belt conveyor. The conveyor belt is arranged in a Zshape and is suitable for occasions that require horizontal and vertical transportation at different heights. Ztype belt conveyor can effectively save space and improve material transportation efficiency.

Z type belt conveyor is suitable for inclined or vertical conveying of various bulk materials for production, assembly, testing, packaging, pharmaceutical express logistics, etc. Its unique structural design makes it difficult for materials to accumulate or tilt during transportation, ensuring the transportation process stability and security.

Application of Z type belt conveyor

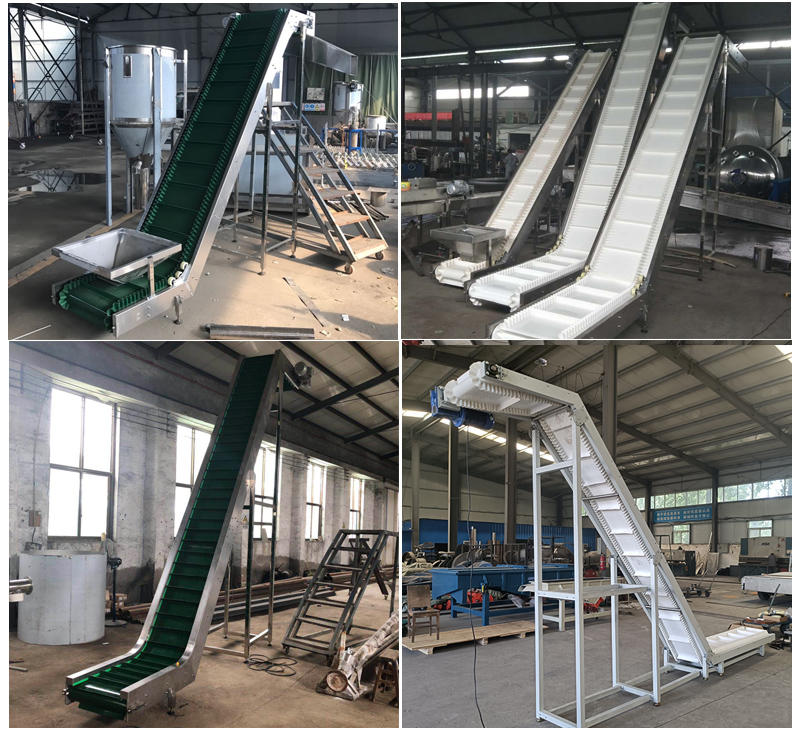

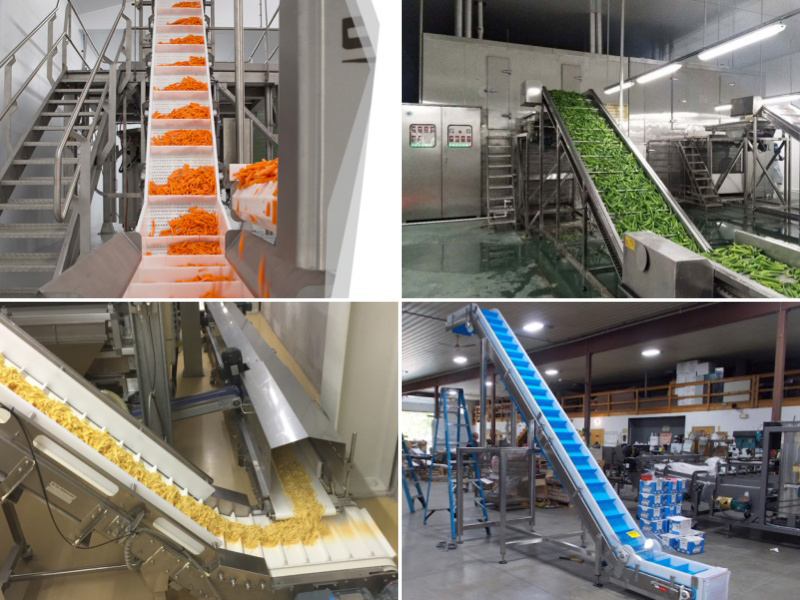

Z type belt conveyor is used for feeding and climbing conveying of various materials. It can convey materials at a degree greater than 30 degrees or even up to 90 degrees vertically. Different from ordinary belt conveyors, Z-type belt conveyors use corrugated sidewall belts. , A partition is added in the middle to prevent the product from falling during the climbing process.

Features of Z type belt conveyor

1. It is used for large inclination or vertical conveying of bulk materials, and the conveying angle is 0-90° (preferably below 70°).

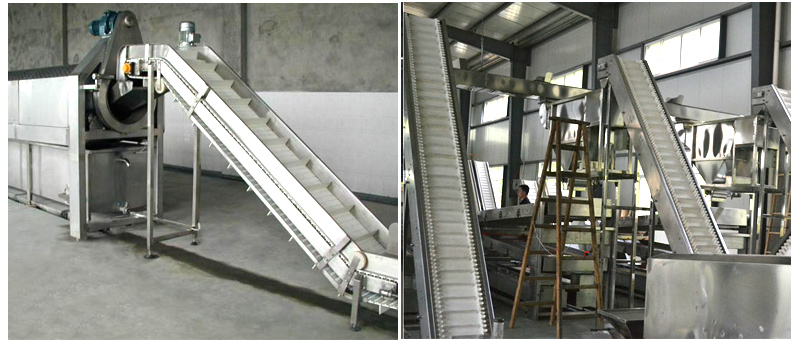

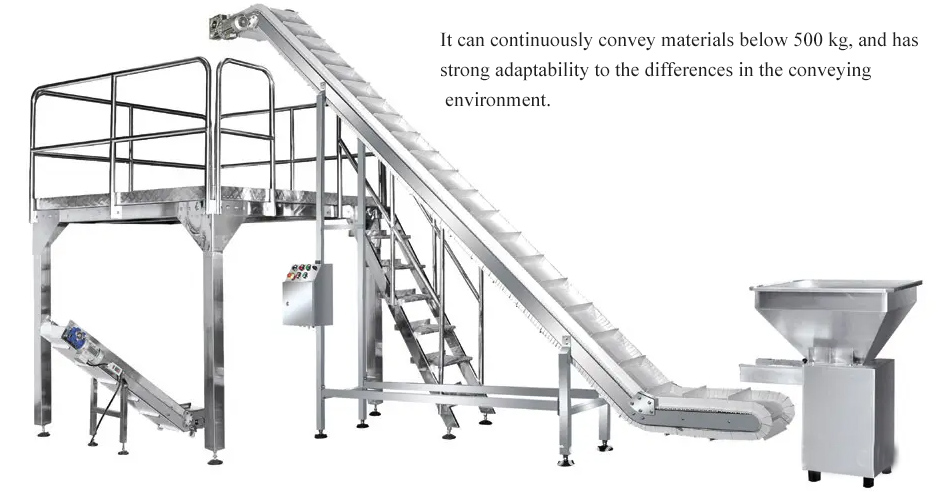

2. It can continuously convey materials below 500 kg, and has strong adaptability to the differences in the conveying environment.

3. The Z type belt conveyor has corrugated walls and transverse partitions, which are not easy to scatter when conveying materials.

4. The machine can realize one or more controlled feeding, and can be easily connected with various feeding devices.

Structure of Z type belt conveyor

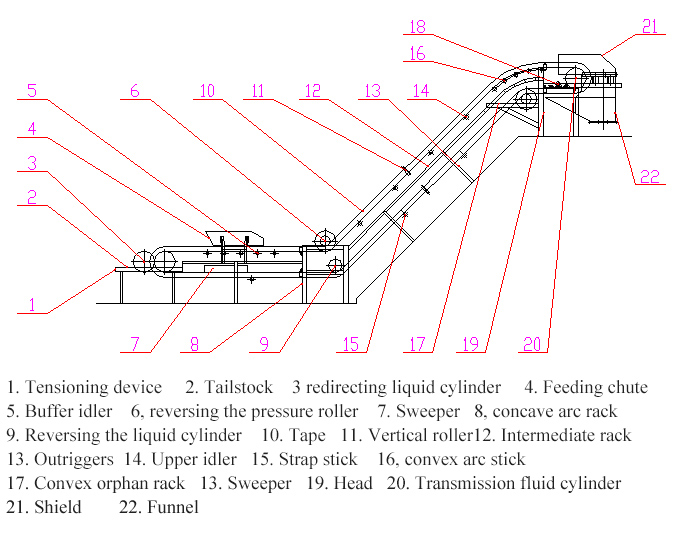

The Z-type belt conveyor adopts the "Z"-shaped construction method, which is mainly composed of an upper horizontal section, an inclined section and a lower horizontal section.

1. Lower horizontal section: low-profile intermediate frame legs are used for smooth loading during loading, reducing the pressure on the conveyor during loading and reducing material scattering.

2. Inclined section: The horizontal section adopts low, medium and high intermediate frame legs, and the inclined section adopts low intermediate frame legs. When the inclination of the conveyor is greater than 45°, it is recommended to use low-profile intermediate frame legs.

3. Upper horizontal section: it is the discharge end. According to the discharge requirements of different heights, the height of the head frame used is different, and the legs of the intermediate frame need to be matched according to the head frame.

Technical parameters of Z type belt conveyor
