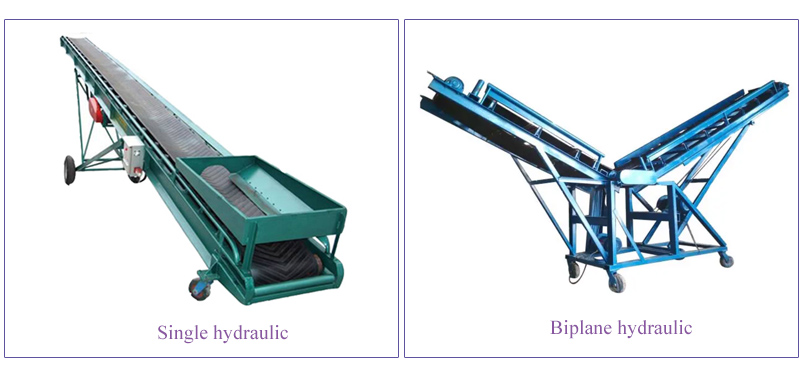

Introduction of Hydraulic Lifting Belt Conveyor

Hydraulic lifting belt conveyor has functions such as hydraulic lifting, electric expansion, electric walking, and grain throwing, and can control its end height at any time. The belt conveyor can complete the transportation, loading and unloading, hoarding, replenishment and other operations of bulk grain in the warehouse. It can move freely, and there are side conduits on both sides of the frame to prevent the material from falling off during the conveying process, and there are adjusting handles on both sides of the feeding hopper to hold up the side plates to prevent material leakage and facilitate the transportation of bulk grain materials. .

Hydraulic lifting belt conveyor has specifications of 5 meters, 8 meters, 10 meters, 12 meters, 15 meters, 18 meters, 20 meters, etc.

Lifting height of 6 meters: 1.7-2.7 meters

Lifting height of 8 meters: 2.5-3.7 meters

Lifting height of 10 meters: 2-4 meters

Lifting height of 12 meters: 2-4.5 meters

Lifting height of 15 meters: 3-6 meters

Application of Hydraulic Lifting Belt Conveyor

use of hydraulic lifting belt conveyor

Hydraulic lifting belt conveyor is a versatile machine that can be used in a wide range of industrial and agricultural applications. Here are some common applications:

Loading and unloading trucks: Commonly used for loading and unloading of trucks and other transport vehicles. The conveyor can be raised or lowered to the desired height to match the height of the truck bed, making it easy to transfer material from the truck to the conveyor and vice versa.

Grain Handling: Commonly used in the agricultural industry to move grain, seeds and other crops. Conveyors can be used to transport materials from storage to processing or transportation facilities and can be adjusted to meet the specific requirements of an application.

Fertilizer Handling: It can be used to move fertilizers and other agricultural products. Conveyors can be used to transport materials from warehouses to on-site or mixing and blending facilities.

Construction Material Handling: Can be used in construction applications to transport materials such as sand, gravel and concrete. Conveyors can be used to transport materials from storage areas to construction sites and can be adjusted to meet the specific requirements of the application.

Recycling: Can also be used in recycling applications to transport materials such as plastic, paper and metal. Conveyors can be used to move material from sorting areas to processing facilities and can be adjusted to meet the specific requirements of the application.

Working Principle of Hydraulic Lifting Belt Conveyor

When using the equipment, move the equipment to the required working position, then lift it to the required height through the hydraulic lifting mechanism, then start the conveying telescopic motor, and stop when the telescopic part is stretched to the required length. Restart the transfer motor. After the standby device is in normal operation, the supporting conveyor will send the bulk grain into the rear hopper of the loading and unloading department, and the grain will be unloaded to a certain position through the telescopic horizontal belt conveyor, so as to meet the requirements of loading and unloading work.

Benefits of Hydraulic Lifting Belt Conveyor

Flexibility

Adjustments can be made to meet the specific requirements of the application. The height of the conveyor is easily adjusted using a hydraulic system, making it easy to match the height of the conveyor to the height of the transport vehicle or storage facility.

Efficiency

Large quantities of bulk materials can be transported quickly and easily. The conveyor can operate on a variety of power sources, including electric, diesel or gasoline engines, providing flexibility to meet application-specific requirements.

Versatility

Can be used in a wide range of industrial and agricultural applications. They can be used to transport materials such as grain, seeds, fertilizers and construction materials, making them a flexible solution for many applications.

Safety

The hydraulic system is designed to prevent overloading, and the conveyor is equipped with safety features such as emergency stop switches and safety guards to prevent accidents and injuries.

Durability

Designed to withstand harsh operating conditions. Conveyor belts are constructed of durable materials such as rubber or PVC, and hydraulic systems are designed to be robust and reliable, ensuring long-term performance and low maintenance requirements.

Reduced costs

Greatly shorten the distance of manual material handling. It reduces laying time, labor intensity and damage to goods, thereby reducing handling costs and improving work efficiency.

Technical Parameter of Hydraulic Lifting Belt Conveyor

project		DY5051	DY5071	DY50101	DY50102	DY50102A	DY50151	DY50152	DY50152A
captain（m）		5	7	10	10	10	15	15	15
bandwidth（mm）		500	500	500	500	500	500	500	500
belt speed（m/s）		1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
conveying height（m）		1.63	1.59	1.77	4.52	4.52	1.61	6.32	6.32
Delivery capacity	m3>h	160	160	160	125	125	160	125	125
Delivery capacity	/h	145	145	145	112	112	145	112	112
Tilt angle (degrees)		13°59′	9°16′	6.5°	10°～>22°	10°～22°	3.81°	10°～22°	10°～22°
electric drum	electric drum	DY1.4	DY1.4	DY1.4	DY1.5	DY1.3	DY1.4	DY1.6	DY1.3
electric drum	powerKW	2.2	2.2	2.2	3.0	1.1	2.2	4.0	1.1
gross weight（kg）		518	604	892	1126	1071	1225	1491	1491

Structure of Hydraulic Lifting Belt Conveyor

Hydraulic lifting belt conveyor mainly has the following three components:

① Mobile chassis

② Hydraulic lift mechanism

③ Turn to the grain thrower

1. Mobile chassis: The chassis is welded by section steel, equipped with four solid rubber wheels with steel hubs, two walking wheels, two universal wheels, and four screw brackets. The chassis can move in any direction on the ground, which is convenient for positioning, maintains stable work, and adjusts the horizontal position of the whole machine. It is the foundation that supports the entire loader.

2. Hydraulic lifting mechanism: It is composed of hydraulic pump, oil cylinder, oil pipe, control mechanism and motor. The lifting height can be adjusted within the height range of 3.2-7.5 meters, which is convenient for grain storage or replenishment operations at different heights.

3. Steering grain throwing machine: Steering grain throwing machine consists of four parts: frame, crawler, crawler frame and running wheel.

Available Options

Hydraulic lifting belt conveyors are highly customizable machines that can be adapted to match the specific requirements of the application. Here are some of the options that are available for hydraulic lifting belt conveyors:

Belt Material: Conveyor belts can be made from a variety of materials, including rubber, PVC, or other materials, depending on the specific requirements of the application.

Belt Width and Length: The width and length of the conveyor belt can be customized to meet the specific requirements of the application.

Height Adjustment Range: The height adjustment range can be customized to meet the specific requirements of the application, allowing the conveyor to be raised or lowered to the desired height.

Power Source: Hydraulic systems can be powered by a variety of power sources including electric, diesel or gasoline engines, providing flexibility to meet application-specific requirements.

Capacity: The capacity of the conveyor can be tailored to the specific requirements of the application, making it possible to transport large quantities of bulk material quickly and easily.

Safety Features: Conveyors can be equipped with various safety features such as emergency stop switches, safety guards and warning lights to prevent accidents and injuries.

Controls: Conveyors can be equipped with various controls, such as manual or automatic, to meet the specific requirements of the application.
