How much is the gypsum powder screw conveyor?

The price of gypsum powder screw conveyor is 1000~4900 dollars.

Note: Because gypsum powder is a powdery material, according to its nature, Dahan recommends that you use a tubular screw conveyor to sieve the gypsum powder. It is generally used for conveying continuous conveying of powdery, small-grained and small-sized bulk materials. In a closed pipe, the chain-driven member drives the gypsum powder along the pipe. When transported horizontally, the gypsum powder is subjected to the thrust of the chain in the direction of motion.

The material selection affects the price:

Model		Diameter (mm)	Pitch (mm)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Price (USD/unit)
Small	100	100	100	140	2.2	112	1.7	90	1.4	71	1.1	400-992
	125	125	125	125	3.8	100	3	80	2.4	63	1.9
	160	160	160	112	7.1	90	5.7	71	4.5	56	3.6
	200	200	200	100	12.4	80	9.9	63	7.8	50	6.2
Small	250	250	250	90	21.8	71	17.2	56	13.6	45	10.9	900-2670
	315	315	315	80	38.8	63	30.5	50	24.2	40	13.4
	400	400	355	71	62.5	56	49.3	45	38.6	36	31.7
Large	500	500	400	63	97.7	50	77.6	40	62	32	49.6	2220-5183
	630	630	450	50	138.5	40	110.8	32	88.6	25	69.3
	800	800	500	40	198.5	32	158.8	25	124.1	20	99.3

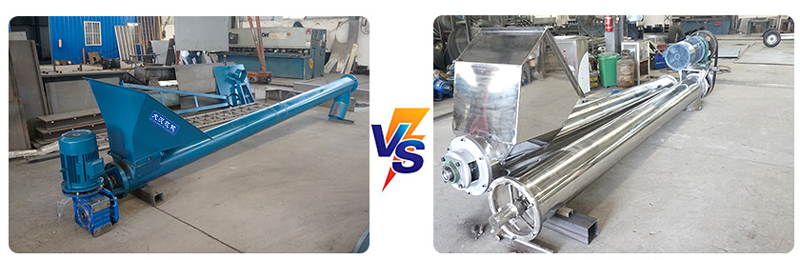

The material of the tubular screw conveyor used for gypsum powder transportation is divided into carbon steel and stainless steel. Stainless steel is a kind of material with high temperature resistance and anti-corrosion performance. It is also widely used and the manufacturing process requirements are relatively high. Therefore, the price of the product is relatively high. It is often used in corrosive, high temperature materials and is more suitable for harsh production environments.

The model selection affects the price:

The model of gypsum powder tube screw conveyor is calculated according to the pipe diameter and length. The price of pipe diameter and length is different. The conveying distance of pipe screw conveyor can be up to 60 meters. Under the same model, the price increases by 200-600 yuan for each additional 1 meter in length.

Manufacturers affect the price:

Dahan Machinery has invested a lot of manpower, material resources and financial resources in the production of gypsum powder screw conveyor! Therefore, the price is higher than that of other manufacturers' equipment, but Dahan is also a direct-selling manufacturer, which saves a lot of time-consuming and laborious intermediate links, so Dahan will give you the lowest price while guaranteeing the quality!

The above is the news about the price of gypsum powder screw conveyor brought by dahan, the price is closely related to the material, model and manufacturer's choice!

If you still have questions, please call the Dahan Customer Service Department and we will provide you with professional and accurate answers.
