How much is the bucket elevator?

The bucket elevator has the same working principle as the vertical screw conveyor, but it has a larger conveying capacity than the vertical screw conveyor and a higher conveying power, so it is more expensive than the vertical screw conveyor. So how much is the bucket elevator?

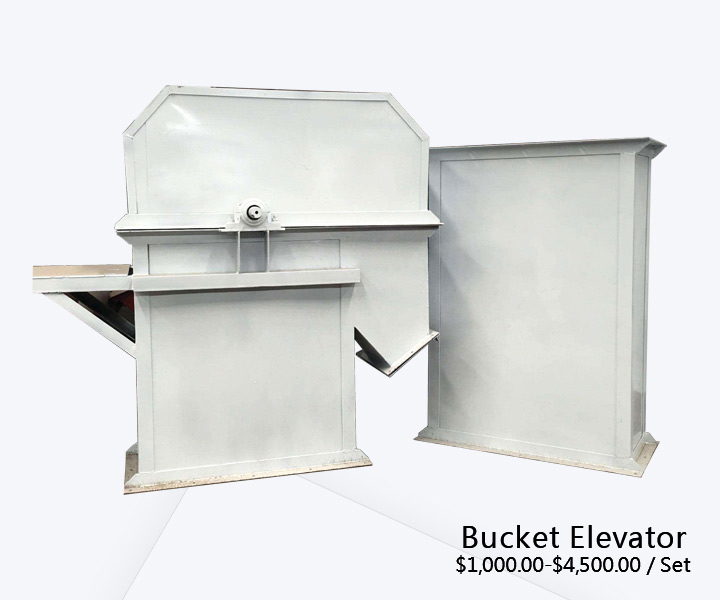

Xinxiang Dahan bucket elevator: $1,000.00-$4,500.00 / Set

Q:Why is there a difference in bucket elevators?

A: The bucket elevator has three different conveying structures: a chain, a chain and a belt.

Different conveying structures have different conveying characteristics and materials: the plate chain structure is relatively firm, the weight is light, and it is suitable for lifting a large lifting machine, but the hinge joint is easy to be worn, and the structure of the tape is relatively simple, but It is not suitable for conveying materials with large abrasiveness. The temperature of ordinary tape materials does not exceed 60 °C, the temperature of the material is up to 80 °C, the temperature of the heat-resistant tape allows the temperature of the material to reach 120 °C, and the material of the chain and the chain is transported. The temperature can reach 250 °C. So the price will vary for different conveyor structures.

A: Bucket elevators have different conveying heights, which are different for different delivery speeds.

The conveying height of the bucket elevator: the conveying height of 35m-50m, and the height of the bucket elevator is also customized to suit different users, so the required conveying height will be different for different usage scenarios.

A: Bucket elevators have different models

Different models also have different delivery volumes. The series of bucket elevators are: NE, TD, and TH. If you want to know a more complete bucket elevator model, as shown below.

Bucket elevators may appear during use, and various delivery problems are provided for everyone, some common problems

The bucket elevator should drive at an empty load. Therefore, all materials in the hopper should be drained before each stop, and then parked.

Can not be reversed. If the reverse is reversed, the chain derailment may occur, and it is troublesome to eliminate the derailment failure.

Feed evenly. It is forbidden to suddenly increase the feed amount. The feeding amount cannot exceed the conveying capacity of the hoist. Otherwise, it is easy to cause a "smuggling" accident when the material at the bottom is piled up seriously.

A:Replenish the lubricating oil in time.

When the chain and hopper are seriously worn or damaged, they should be replaced in time.

For the "How much is the bucket elevator", I will introduce it here. If you have any intention to purchase, please consult the online customer service staff of Xinxiang Dahan Machinery.
